Stinger Attachments Bigfoot XD Trencher For Skid Steers - Stinger Attachments - Beacon Attachments

Stinger Attachments Bigfoot XD Trencher For Skid Steers

by Stinger Attachments
SKU BF-1
$7,480.00 - $10,850.00
$7,480.00
$7,480.00 - $10,850.00
$7,480.00

Authorized Dealer

Beacon Attachments is an authorized dealer of Stinger Attachments, ensuring quality and full manufacturer support.

Important Freight Shipping Notice

Our equipment ships via freight, and shipping costs are charged separately after checkout.

Prefer a single transatcion? Call us to place your order by phone.

Contact us anytime for a freight estimate. (810) 207-5677

Request a quote

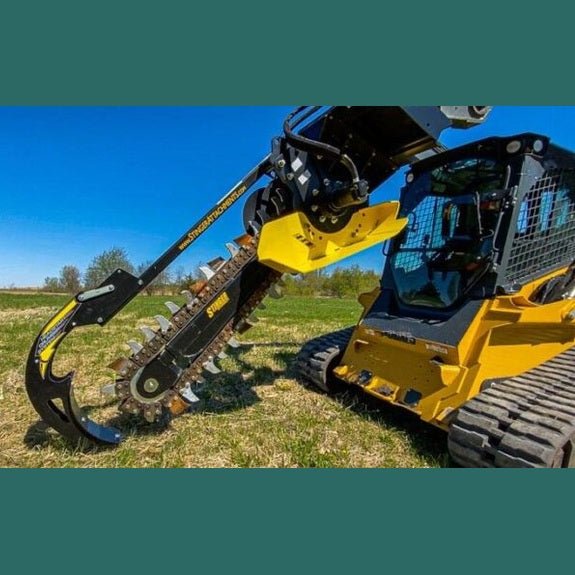

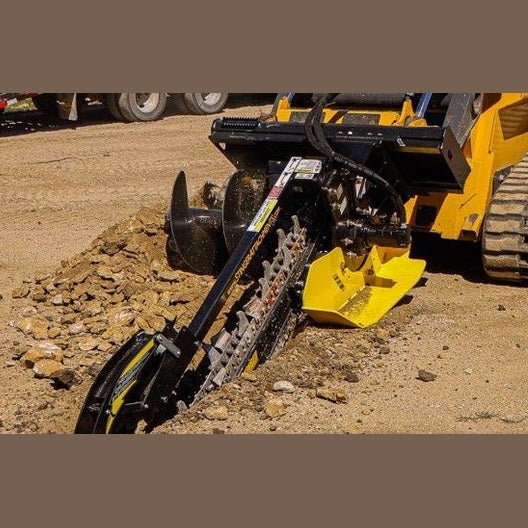

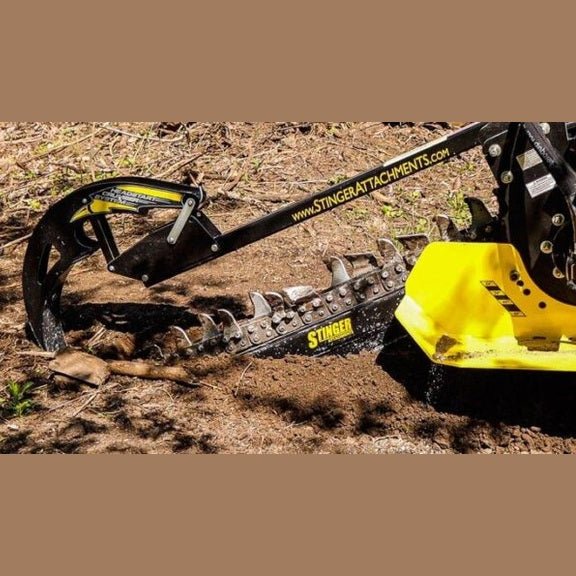

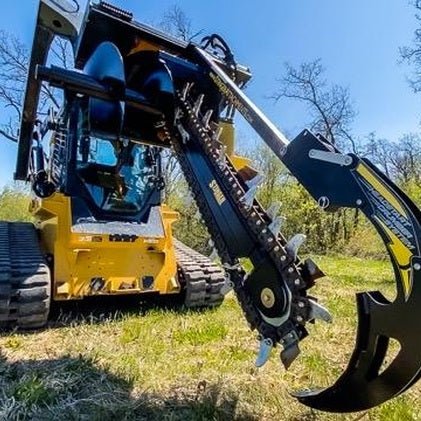

With its innovative features, Stinger Attachments trenchers are the most user friendly on the market. The Bigfoot XD trencher allows the crumber bar to start in the trench, eliminating the need to get out of the machine to reset the crumber bar (patent pending). A uniquely designed foot can be seen from the cab allowing the operator to see when the trencher is in the correct trenching position – No need for a spotter. A large Spoil Auger completes the crumbing system to clear the spoil faster, increasing efficiency and improving productivity.The Bigfoot XD trencher features an adjustable depth control foot which ensures the operator trenches at a set depth at all times. Three different chain options are also available for trenching in different ground conditions from general earth, to rocky ground, concrete, asphalt, and frozen ground.

FEATURES

  • Includes SkidSteer Mount, Or EuroGlobal
  • Headstart Crumber System (patent pending)
  • Adjustable Skid Foot to maintain constant digging depth
  • Skid Foot is visible from the cab
  • Frame can be side shifted for digging close to permanent structures
  • 3 different Chain options, Earth, Combo, and Diggatac
  • Industry Leading Warranty

Ideal Use & Machine Suitability

  • Pipe laying for irrigation, underground power and communications, road repairs, and general construction

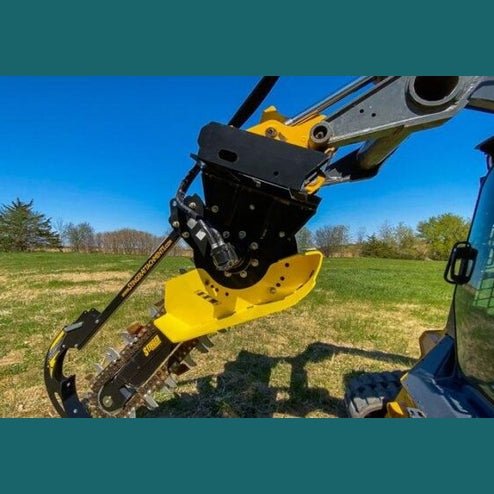

  • Excavators up to 8 ton, skid steer loaders, backhoes

SPECIFICATIONS

SPECIFICATION XD 900 XD1200 XD1200 (HI-FLOW) XD1500 (HI-FLOW)
CUTTING DEPTH UP TO 36” UP TO 48” UP TO 48” UP TO 60”
CUTTING WIDTHS 6” / 8” /10” / 12” 6” / 8” /10” / 12 6” / 8” /10” / 12 6” / 8” /10” / 12
FOOT DEPTH PRESETS 18”,24”30”36” 24”,32”,40”,48” 24”,32”,40”,48” 30”,40”,48”60”
RECOMMENDED FLOW 16-30GPM 16-30GPM 28-45GPM 28-45GPM
MOTOR TYPE 2K BELL EATON 2K BELL EATON 6K BELL EATON 6K BELL EATON
MAX PRESSURE – DO NOT EXCEED 3500 PSI @ 16GPM 3500 PSI @ 16GPM 3500 PSI @ 34GPM 3500 PSI @ 34GPM
MAX FLOW – DO NOT EXCEED 25GPM @ 2900 PSI 25GPM @ 2900 PSI 45GPM @ 2800 PSI 45GPM @ 2800 PSI
MAX CONTINUOUS POWER 34 HP 34 HP 67 HP 67 HP
LENGTH 76” 100” 100” 106”
HORIZONTAL HEIGHT 26” 31” 31” 33”
WIDTH 48” 48” 48” 45”
WEIGHT 575 LBS 855 LBS 935 LBS 1016 LBS



SHIPPING & SUPPORT

This product ships directly from Stinger Attachments U.S. manufacturing facility. Standard lead time is 5–7 business days to ship.

Have questions or need help choosing the right size or accessories?
Contact us at sales@beaconattachments.com or call (810) 207-5677  — our team is here to help.

Compare products

{"one"=>"Select 2 or 3 items to compare", "other"=>"{{ count }} of 3 items selected"}

Select first item to compare

Select second item to compare

Select third item to compare

Compare
OVERVIEW

With its innovative features, Stinger Attachments trenchers are the most user friendly on the market. The Bigfoot XD trencher allows the crumber bar to start in the trench, eliminating the need to get out of the machine to reset the crumber bar (patent pending). A uniquely designed foot can be seen from the cab allowing the operator to see when the trencher is in the correct trenching position – No need for a spotter. A large Spoil Auger completes the crumbing system to clear the spoil faster, increasing efficiency and improving productivity.The Bigfoot XD trencher features an adjustable depth control foot which ensures the operator trenches at a set depth at all times. Three different chain options are also available for trenching in different ground conditions from general earth, to rocky ground, concrete, asphalt, and frozen ground.

FEATURES
  • Includes SkidSteer Mount, Or EuroGlobal
  • Headstart Crumber System (patent pending)
  • Adjustable Skid Foot to maintain constant digging depth
  • Skid Foot is visible from the cab
  • Frame can be side shifted for digging close to permanent structures
  • 3 different Chain options, Earth, Combo, and Diggatac
  • Industry Leading Warranty

Ideal Use & Machine Suitability

  • Pipe laying for irrigation, underground power and communications, road repairs, and general construction
  • Excavators up to 8 ton, skid steer loaders, backhoes
SPECIFICATIONS
SPECIFICATION XD 900 XD1200 XD1200 (HI-FLOW) XD1500 (HI-FLOW)
CUTTING DEPTH UP TO 36” UP TO 48” UP TO 48” UP TO 60”
CUTTING WIDTHS 6” / 8” /10” / 12” 6” / 8” /10” / 12 6” / 8” /10” / 12 6” / 8” /10” / 12
FOOT DEPTH PRESETS 18”,24”30”36” 24”,32”,40”,48” 24”,32”,40”,48” 30”,40”,48”60”
RECOMMENDED FLOW 16-30GPM 16-30GPM 28-45GPM 28-45GPM
MOTOR TYPE 2K BELL EATON 2K BELL EATON 6K BELL EATON 6K BELL EATON
MAX PRESSURE – DO NOT EXCEED 3500 PSI @ 16GPM 3500 PSI @ 16GPM 3500 PSI @ 34GPM 3500 PSI @ 34GPM
MAX FLOW – DO NOT EXCEED 25GPM @ 2900 PSI 25GPM @ 2900 PSI 45GPM @ 2800 PSI 45GPM @ 2800 PSI
MAX CONTINUOUS POWER 34 HP 34 HP 67 HP 67 HP
LENGTH 76” 100” 100” 106”
HORIZONTAL HEIGHT 26” 31” 31” 33”
WIDTH 48” 48” 48” 45”
WEIGHT 575 LBS 855 LBS 935 LBS 1016 LBS



SHIPPING & SUPPORT

This product ships directly from Stinger Attachments U.S. manufacturing facility. Standard lead time is 5–7 business days to ship.

Have questions or need help choosing the right size or accessories?
Contact us at sales@beaconattachments.com or call (810) 207-5677  — our team is here to help.

WARRANTY

Stinger Attachments warrants each new product manufactured by Stinger to be free from defects in material and workmanship for a period of Twenty-Four (24) months from date of delivery to the original purchaser. Certain Items may have an extended warranty, such as Cascade forks and Eaton drive motors. Please check each product page for more information.

All returns must be in new condition with all freight costs the responsibility of the buyer. No returns accepted after 10 days of buyer receiving the product.
