Stinger Attachments Bale Spear – Series 4 (BS4) Large Square Bale Mover For Skid Steers

by Stinger Attachments
SKU BS4-39
$1,300.00 - $1,645.00
$1,300.00
$1,300.00 - $1,645.00
$1,300.00

Authorized Dealer

Beacon Attachments is an authorized dealer of Stinger Attachments, ensuring quality and full manufacturer support.

Important Freight Shipping Notice

Our equipment ships via freight, and shipping costs are charged separately after checkout.

Prefer a single transatcion? Call us to place your order by phone.

Contact us anytime for a freight estimate. (810) 207-5677

Request a quote

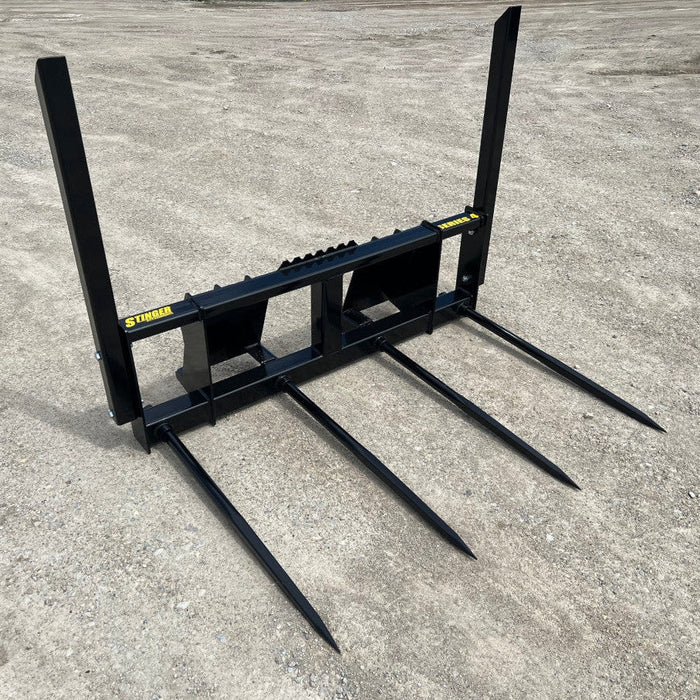

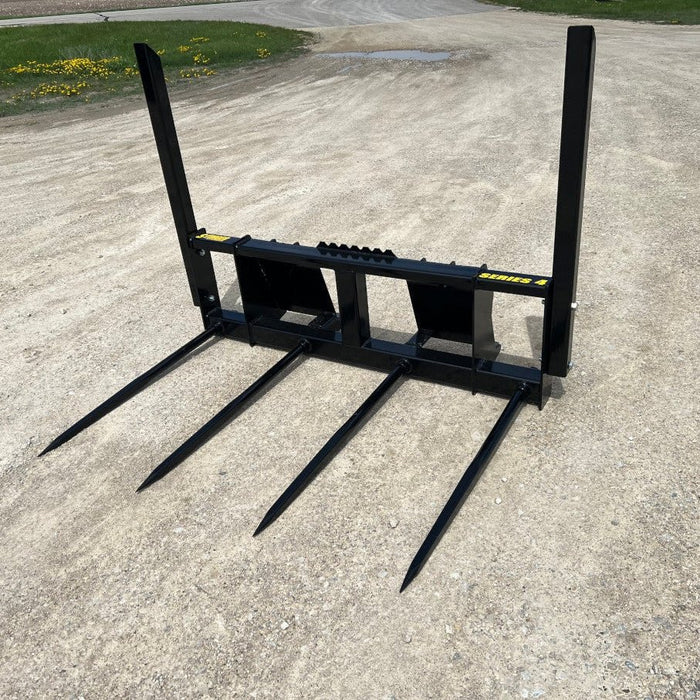

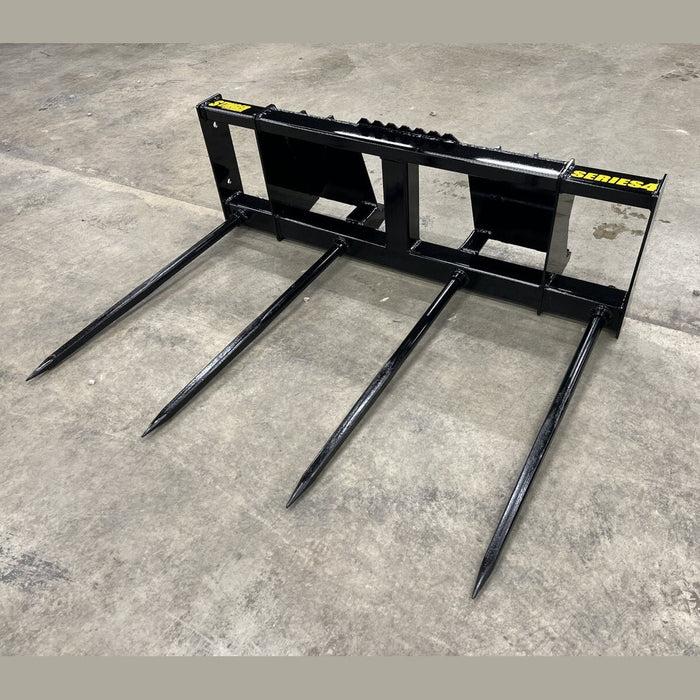

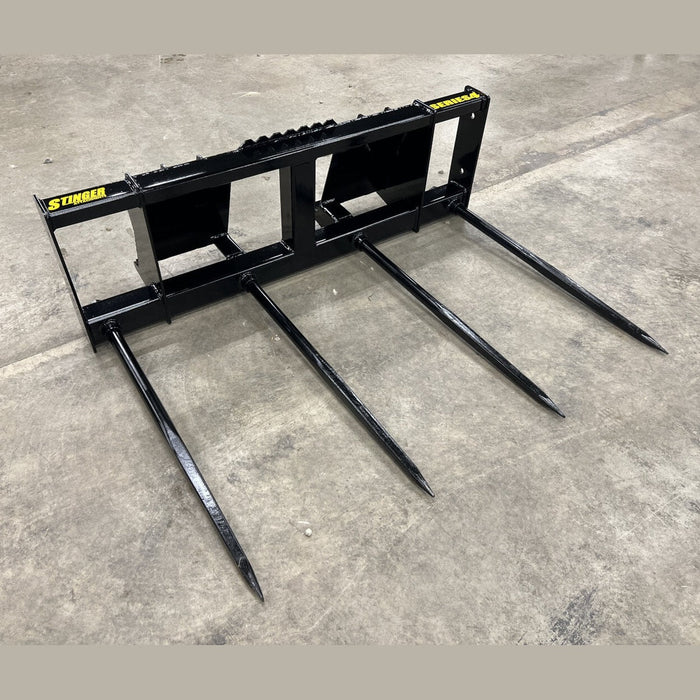

The Stinger Series 4 Bale Spear is a high-capacity, four-tine attachment specifically engineered for handling two large square bales at once. With heavy-duty construction and a massive 14,000 lb capacity, it’s built for demanding agricultural operations that require strength, stability, and efficiency.

Featuring four spears spaced 61″ apart and available in multiple lengths (39″, 43″, or 49″), the Series 4 ensures secure transport and reduced bale shifting. It also includes a 70° back angle for smooth engagement, replaceable tines with a double-nut system, and a built-in safety step for operator convenience. Optional bolt-on supports add extra stability when lifting two stacked bales.

Ideal for large farms, feedlots, and commercial hay operations, the Series 4 combines rugged performance with practical versatility—all proudly made in the USA.

FEATURES

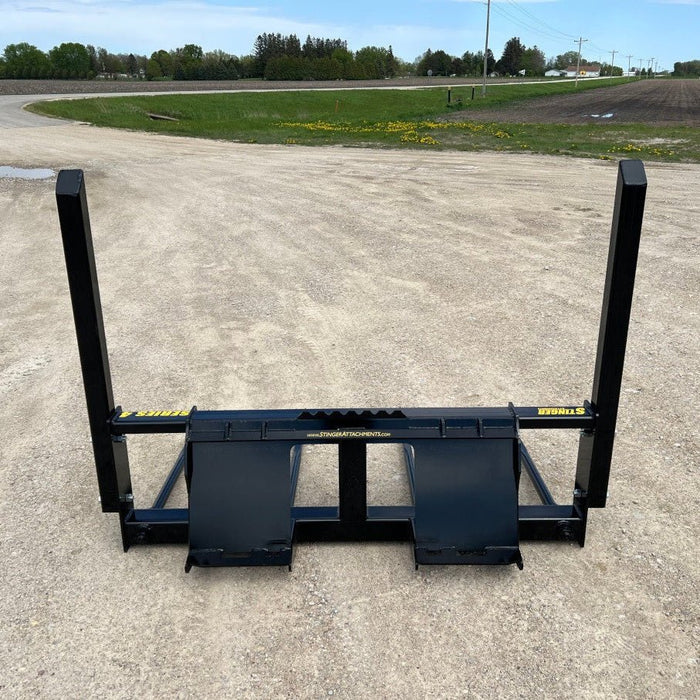

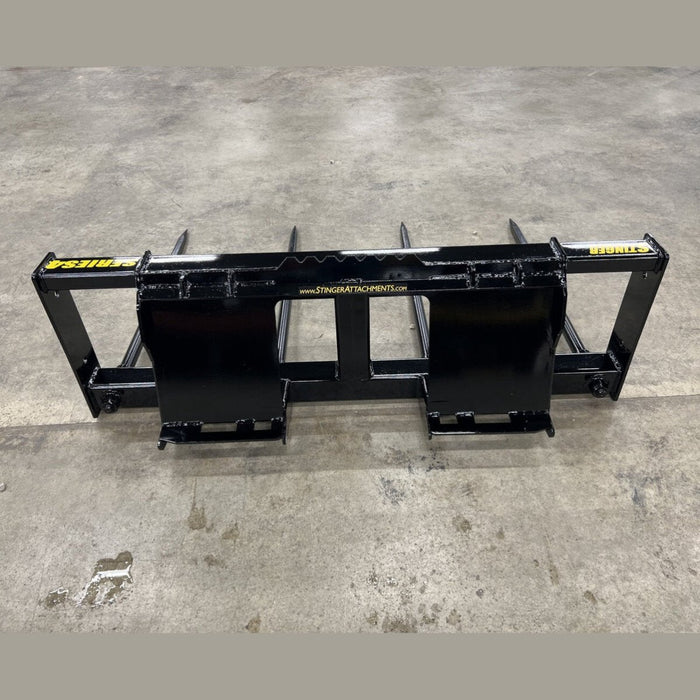

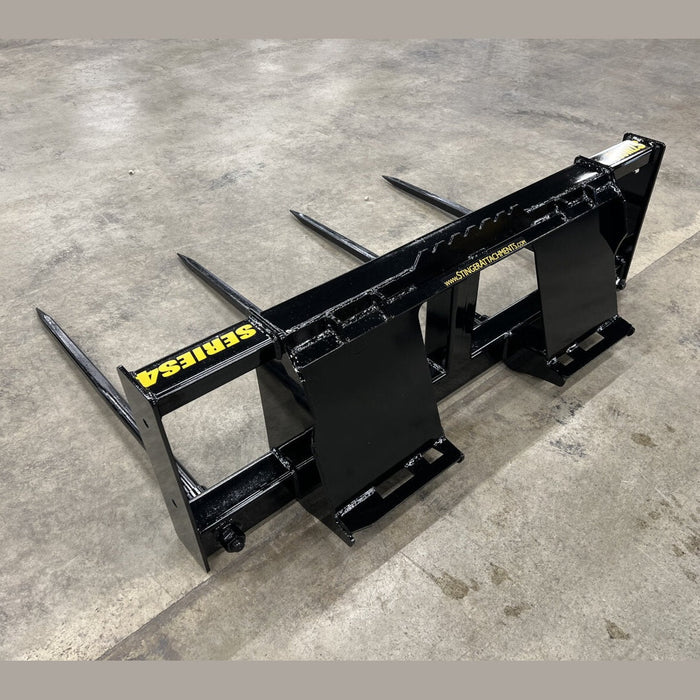

  • Skid-Steer Hookup

Universal quick-attach compatible; can be modified to fit tractors, loaders, or other machines.

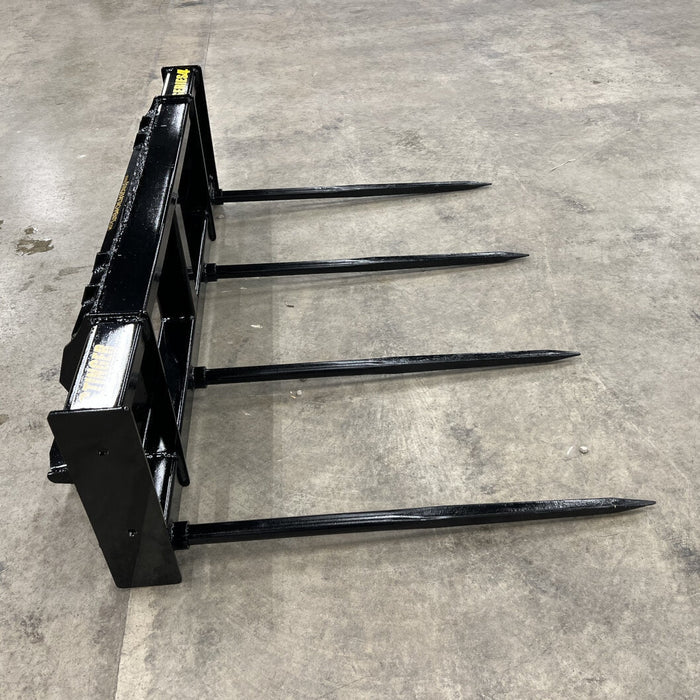

  • Three Spear Length Options:

39″ spear – 33″ usable length

43″ spear – 37″ usable length

49″ spear – 43.5″ usable length

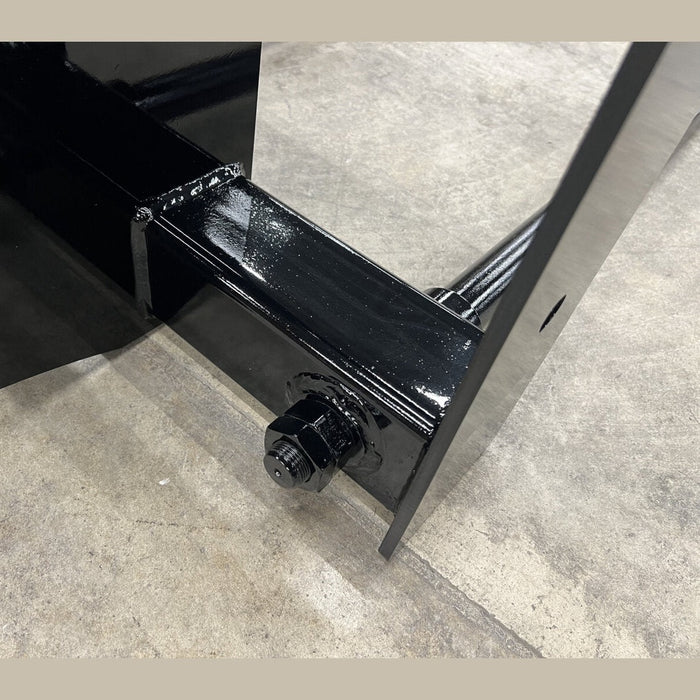

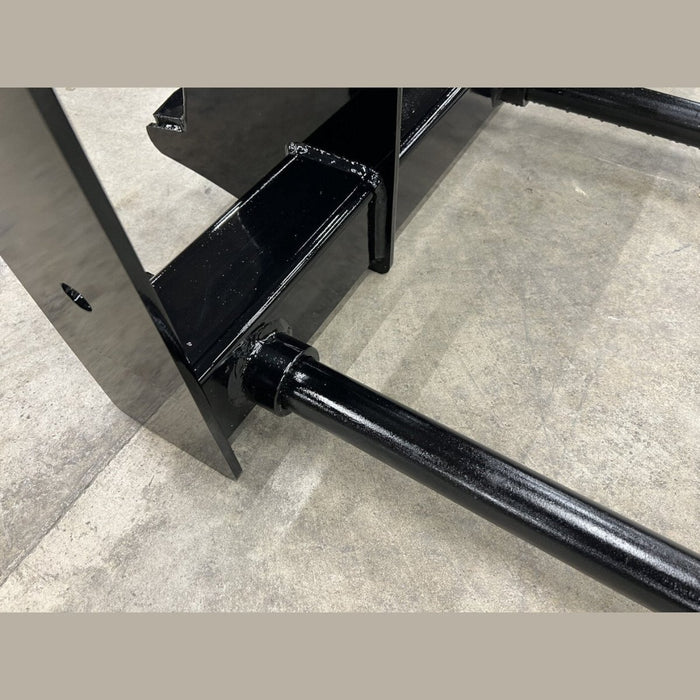

  • Replaceable Tines

Durable spears secured with a double-nut system for easy replacement.

  • Built-in Safety Step

Provides secure footing for operator access during use.

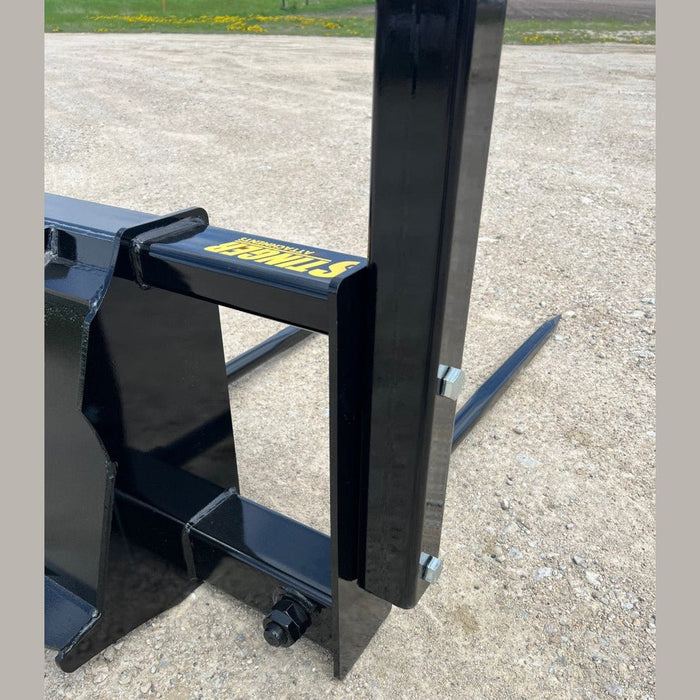

  • Optional Bolt-On Side Supports

Adds extra stability when lifting and transporting two bales.

SPECIFICATIONS

Specification Details
Weight 351 lb (with 43″ spears)
Back Angle 70 degrees
Top Support Tube 4″ × 2″ × ¼″
Bottom Tube 4″ × 4″ × ¼″
Side Plates ⅜″ Grade 50 steel
Spear Length Options 39″, 43″, 49″ (replaceable)
Mount Type Skid-steer universal (modifiable)



SHIPPING & SUPPORT

This product ships directly from Stinger Attachments U.S. manufacturing facility. Standard lead time is 5–7 business days to ship.

Have questions or need help choosing the right size or accessories?
Contact us at sales@beaconattachments.com or call (810) 207-5677 — our team is here to help.

Compare products

{"one"=>"Select 2 or 3 items to compare", "other"=>"{{ count }} of 3 items selected"}

Select first item to compare

Select second item to compare

Select third item to compare

Compare
OVERVIEW

The Stinger Series 4 Bale Spear is a high-capacity, four-tine attachment specifically engineered for handling two large square bales at once. With heavy-duty construction and a massive 14,000 lb capacity, it’s built for demanding agricultural operations that require strength, stability, and efficiency.

Featuring four spears spaced 61″ apart and available in multiple lengths (39″, 43″, or 49″), the Series 4 ensures secure transport and reduced bale shifting. It also includes a 70° back angle for smooth engagement, replaceable tines with a double-nut system, and a built-in safety step for operator convenience. Optional bolt-on supports add extra stability when lifting two stacked bales.

Ideal for large farms, feedlots, and commercial hay operations, the Series 4 combines rugged performance with practical versatility—all proudly made in the USA.

FEATURES

  • Skid-Steer Hookup

Universal quick-attach compatible; can be modified to fit tractors, loaders, or other machines.

  • Three Spear Length Options:

39″ spear – 33″ usable length

43″ spear – 37″ usable length

49″ spear – 43.5″ usable length

  • Replaceable Tines

Durable spears secured with a double-nut system for easy replacement.

  • Built-in Safety Step

Provides secure footing for operator access during use.

  • Optional Bolt-On Side Supports

Adds extra stability when lifting and transporting two bales.

SPECIFICATIONS
Specification Details
Weight 351 lb (with 43″ spears)
Back Angle 70 degrees
Top Support Tube 4″ × 2″ × ¼″
Bottom Tube 4″ × 4″ × ¼″
Side Plates ⅜″ Grade 50 steel
Spear Length Options 39″, 43″, 49″ (replaceable)
Mount Type Skid-steer universal (modifiable)



SHIPPING & SUPPORT

This product ships directly from Stinger Attachments U.S. manufacturing facility. Standard lead time is 5–7 business days to ship.

Have questions or need help choosing the right size or accessories?
Contact us at sales@beaconattachments.com or call (810) 207-5677 — our team is here to help.

WARRANTY

Stinger Attachments warrants each new product manufactured by Stinger to be free from defects in material and workmanship for a period of Twenty-Four (24) months from date of delivery to the original purchaser. Certain Items may have an extended warranty, such as Cascade forks and Eaton drive motors. Please check each product page for more information.

All returns must be in new condition with all freight costs the responsibility of the buyer. No returns accepted after 10 days of buyer receiving the product.
