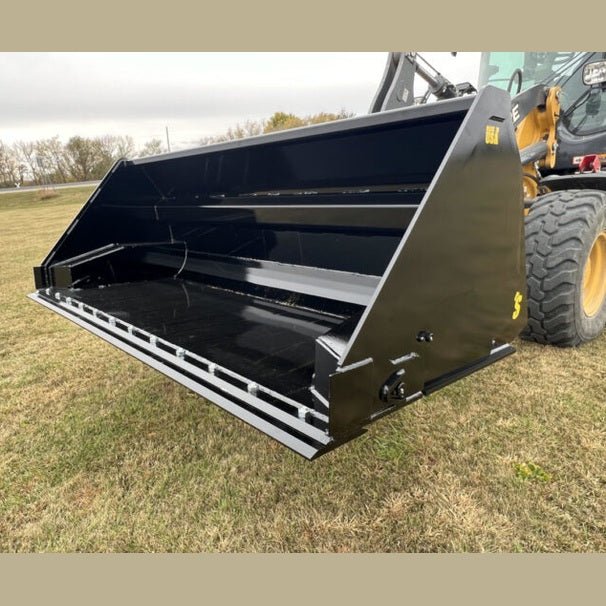

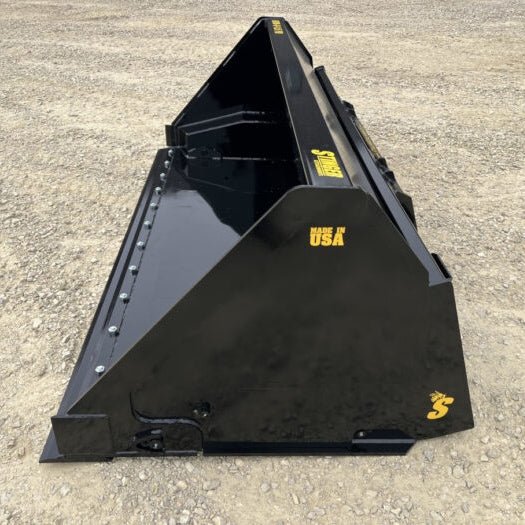

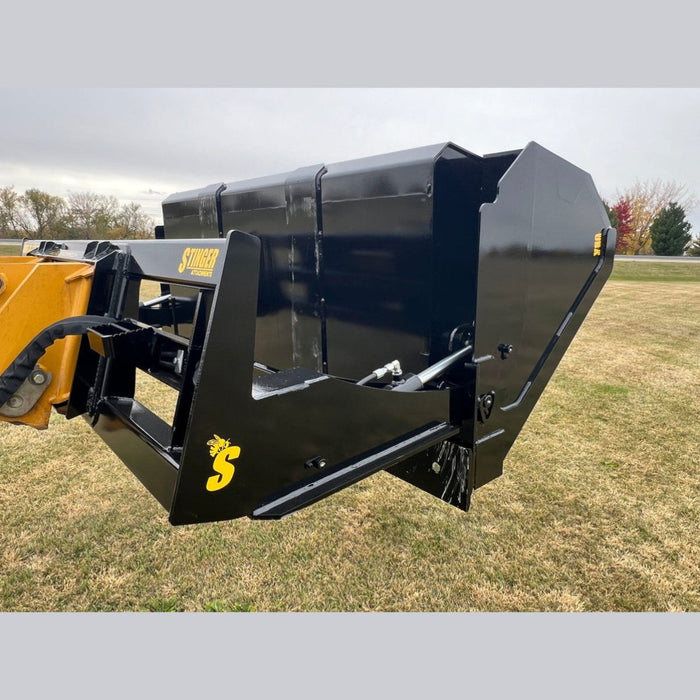

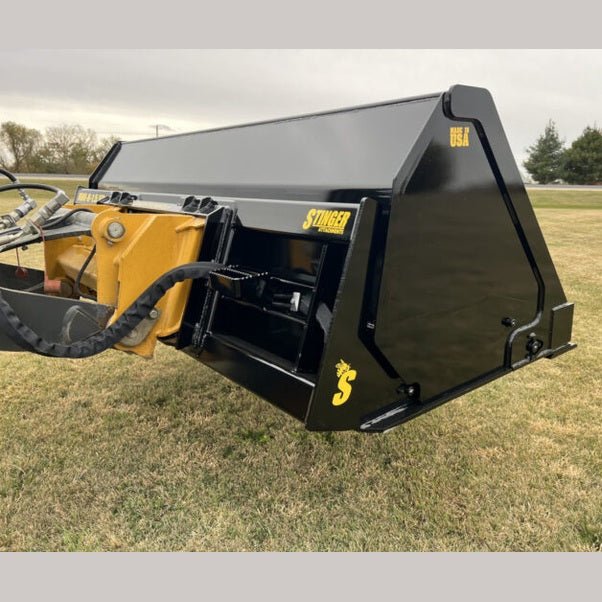

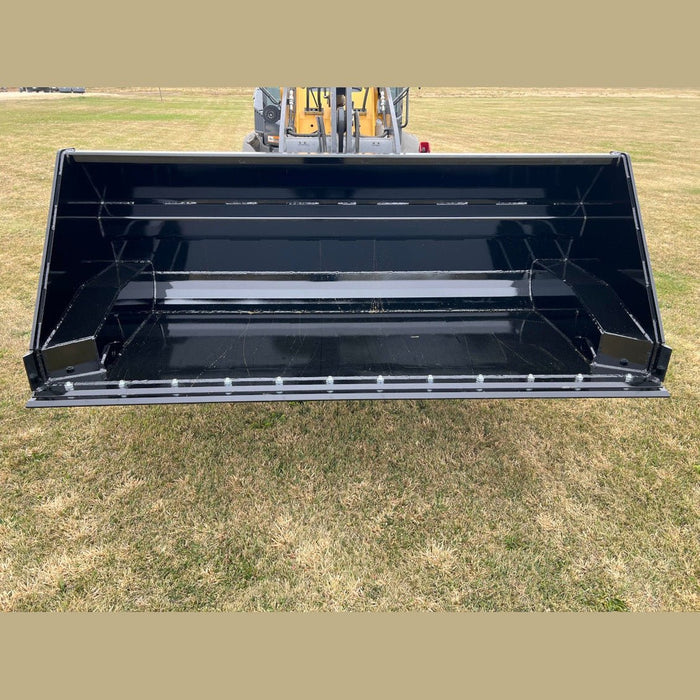

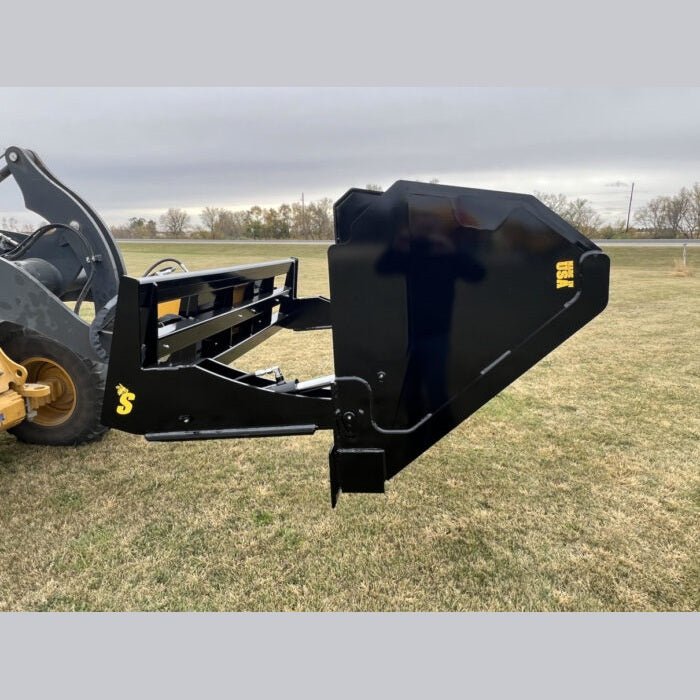

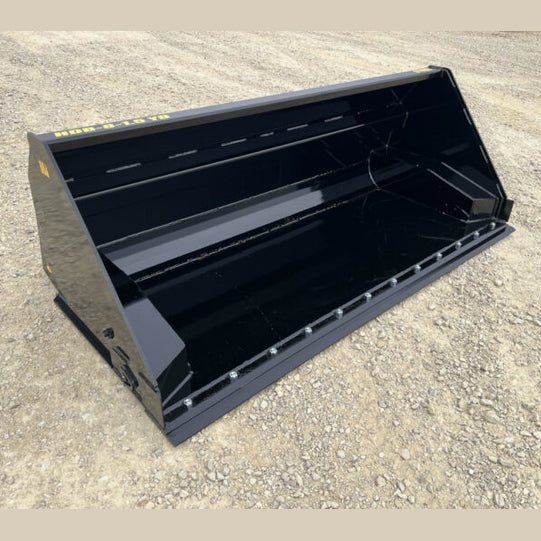

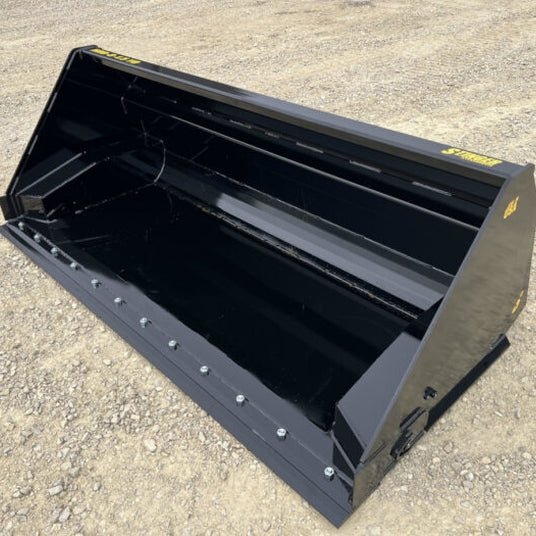

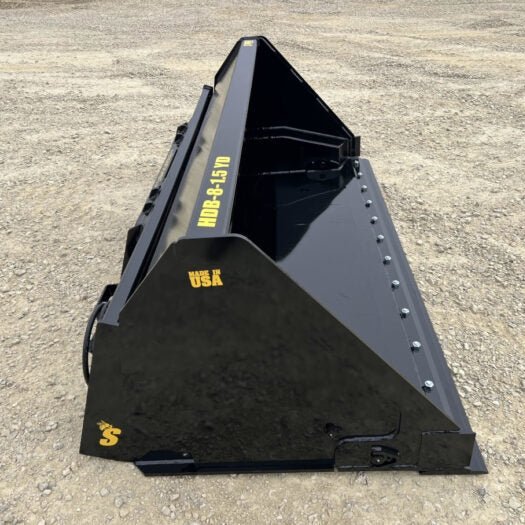

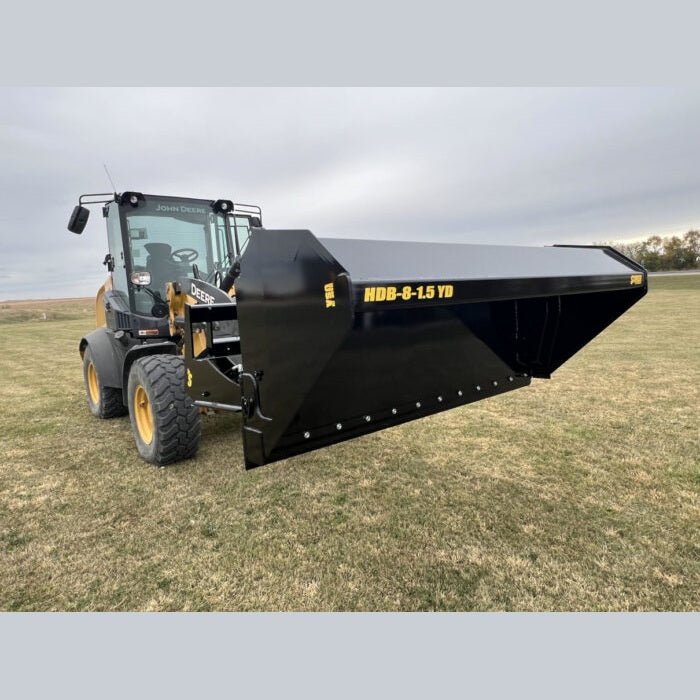

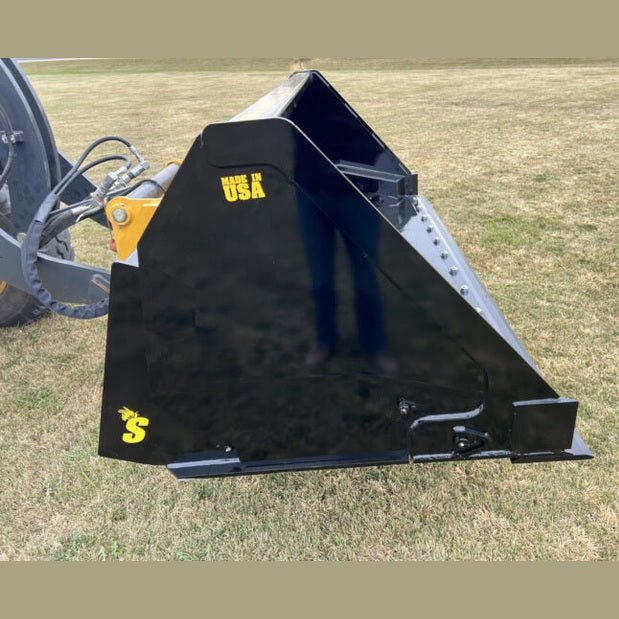

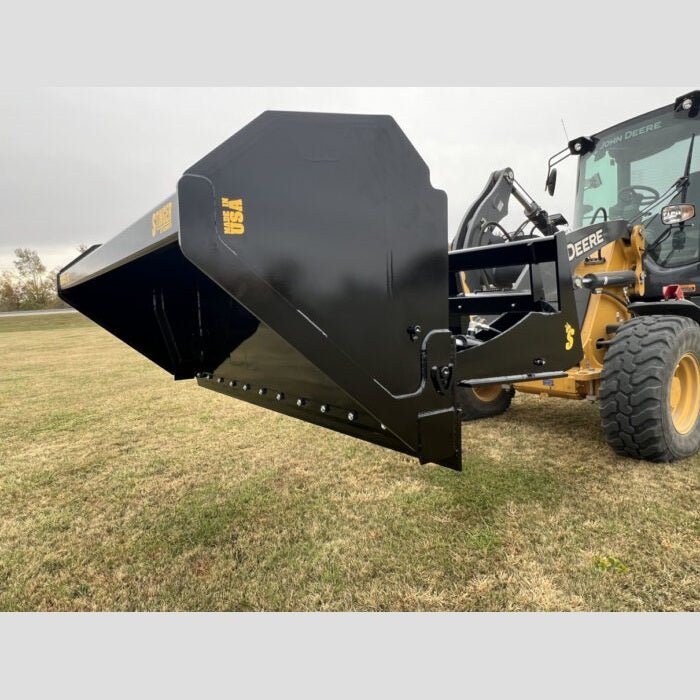

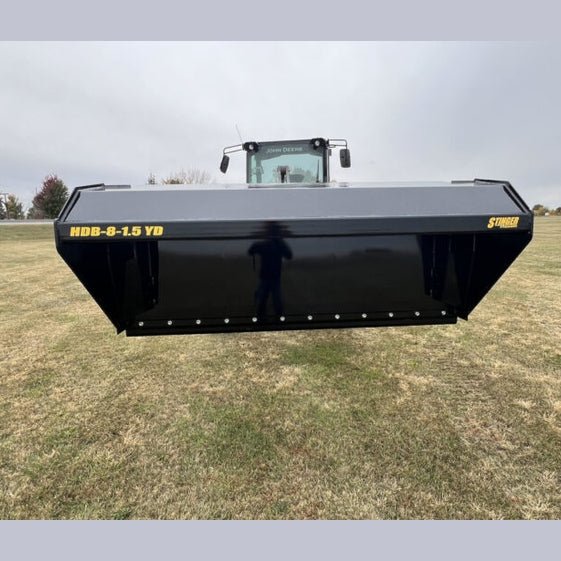

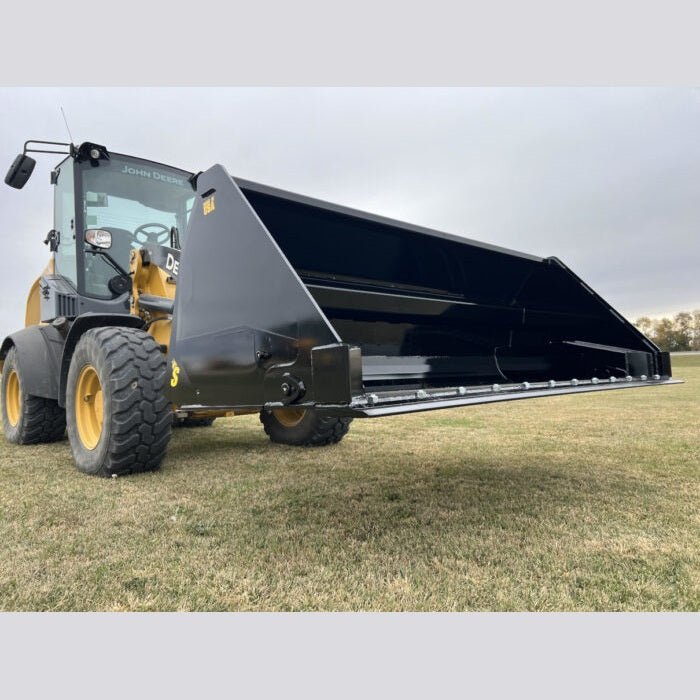

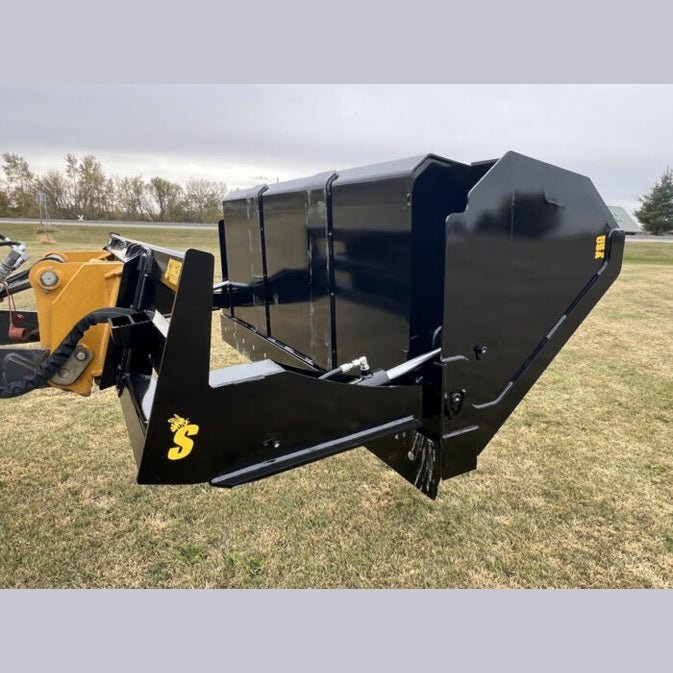

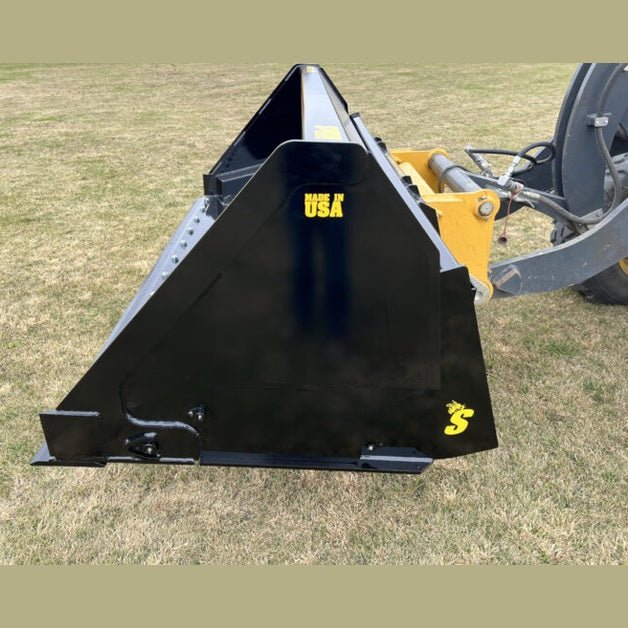

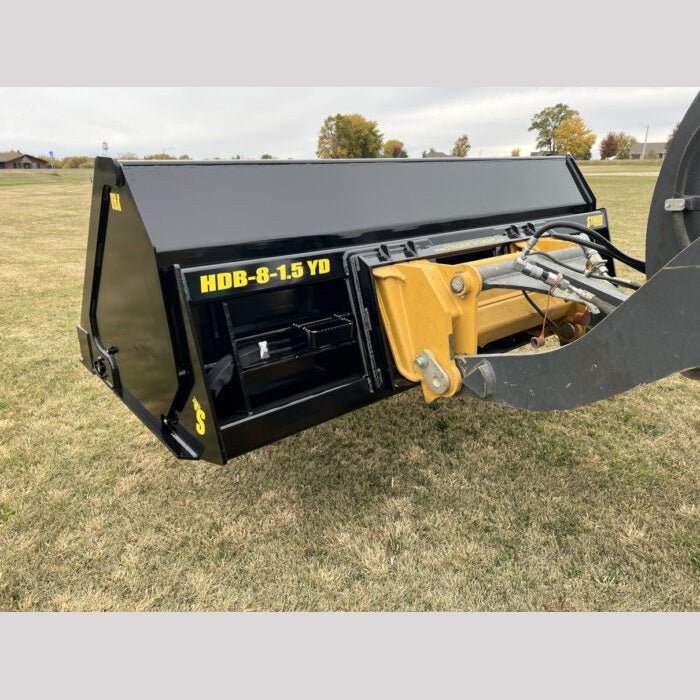

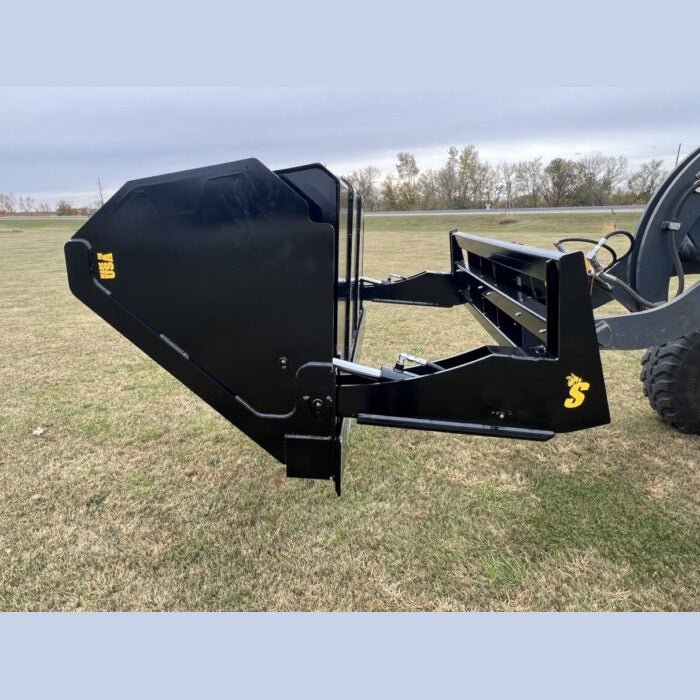

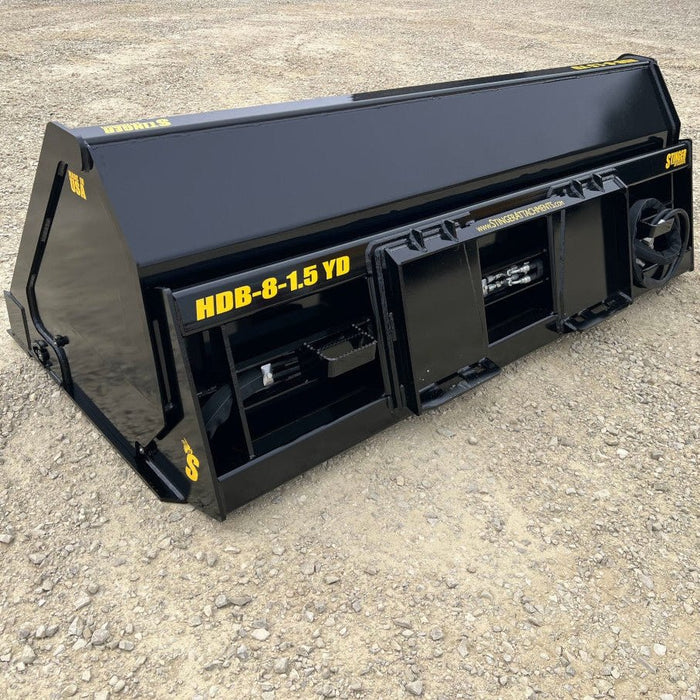

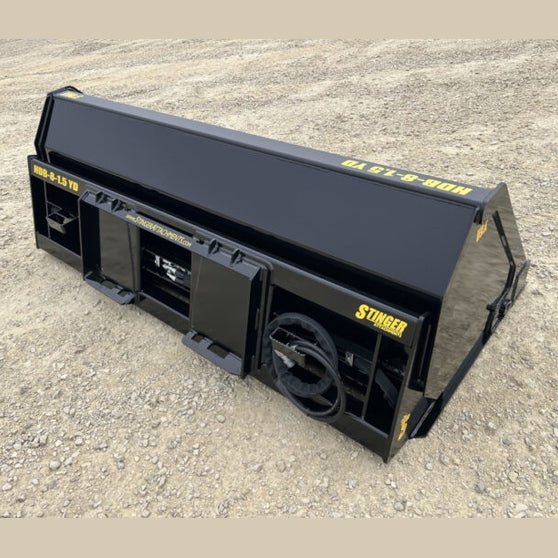

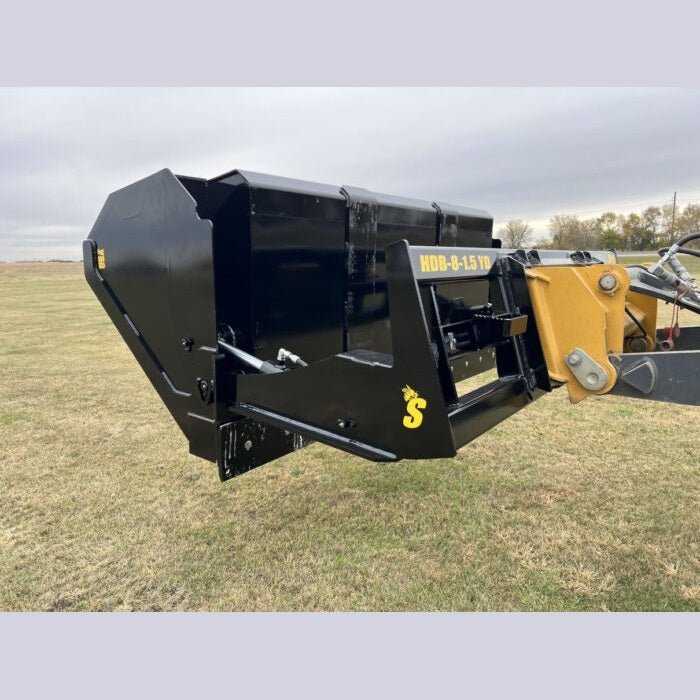

The Stinger Attachments Hydraulic Dump Bucket is designed to effectively extend the dump height of any wheel loader by utilizing hydraulic cylinders to tilt the bucket allowing the machine to maintain full lift height without sacrificing the dump height of a traditional bucket for applications where lift height is limited by the machine or higher than normal lift is needed in applications such as high-sided trailers or containers. This is useful for allowing skid steers to capitalize on faster lift cycle times than most payloaders while effectively achieving the dump height of a larger machine. The Stinger Hydraulic Dump Bucket features a strong support frame design with greaseable and replaceable pins and a replaceable double sided cut edge to ensure a long bucket life. The Stinger Attachments Hydraulic Dump Bucket is offered with a universal skid steer mount plate or many other common Global or ISO agricultural or construction mounts.

FEATURES & SPECS

• ¼” Grade 50 Shell
• ½” Wear Skids

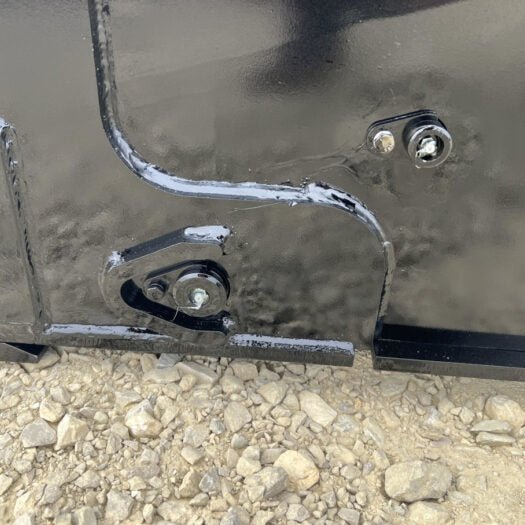

• 1” Greaseable Pivot Pins (Replaceable)

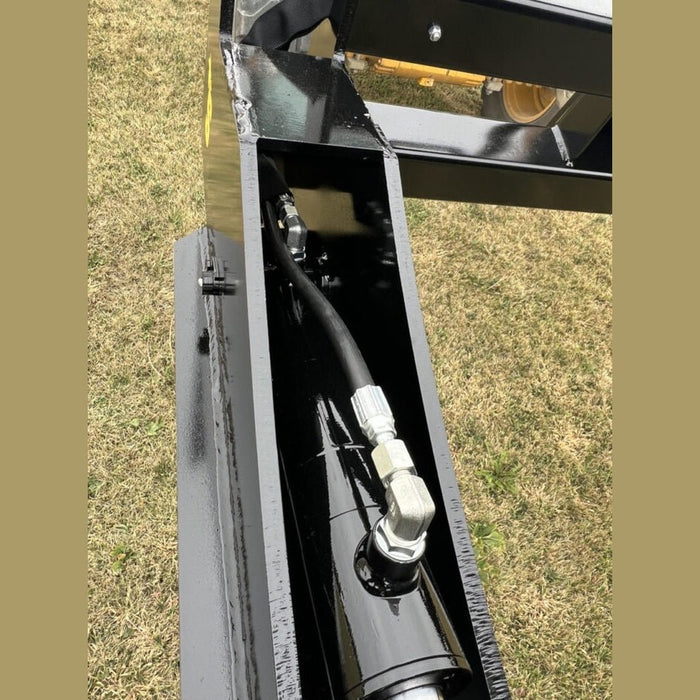

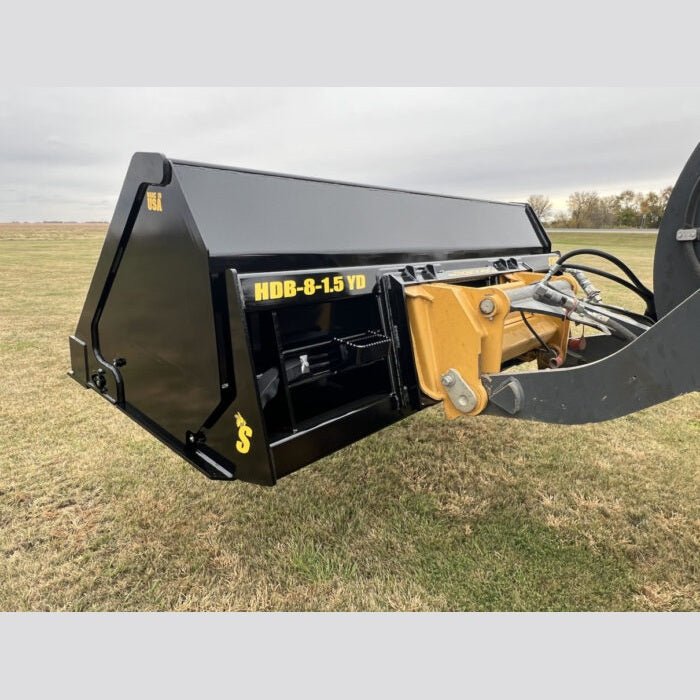

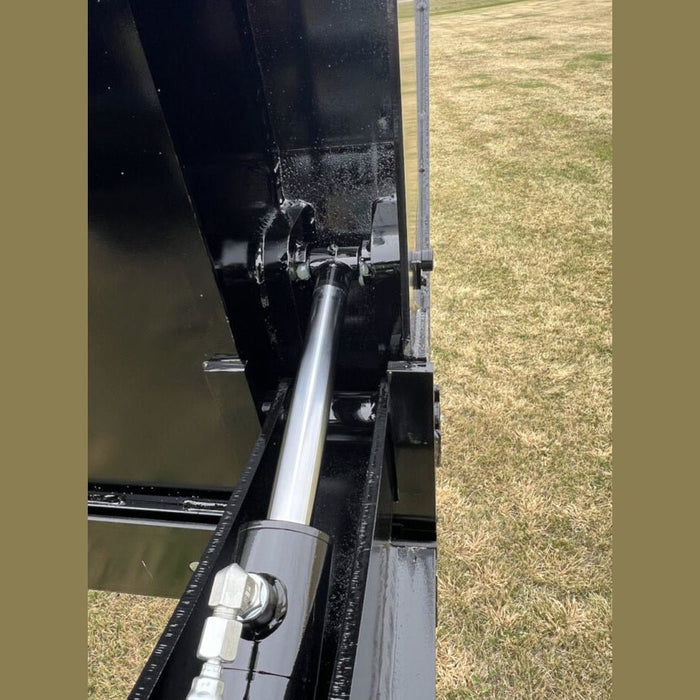

• 2-1/2” x 10” Welded Cylinders
• Cylinder Stops

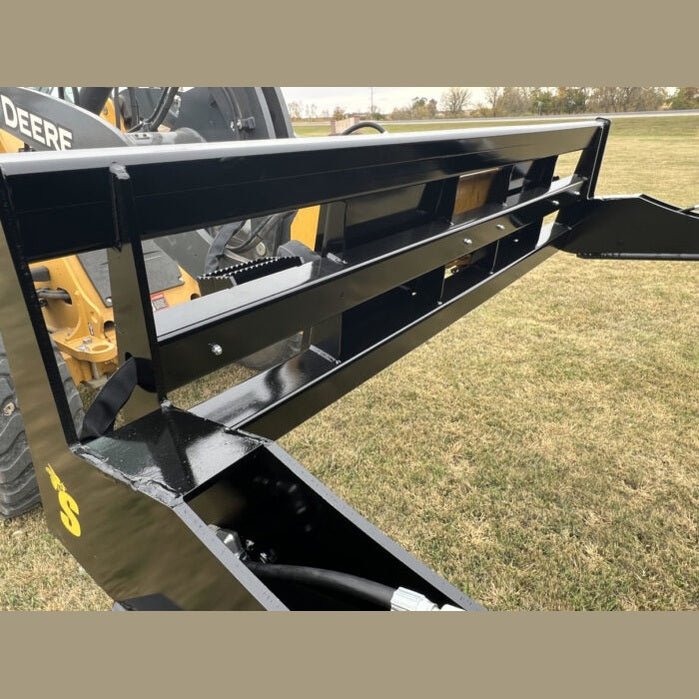

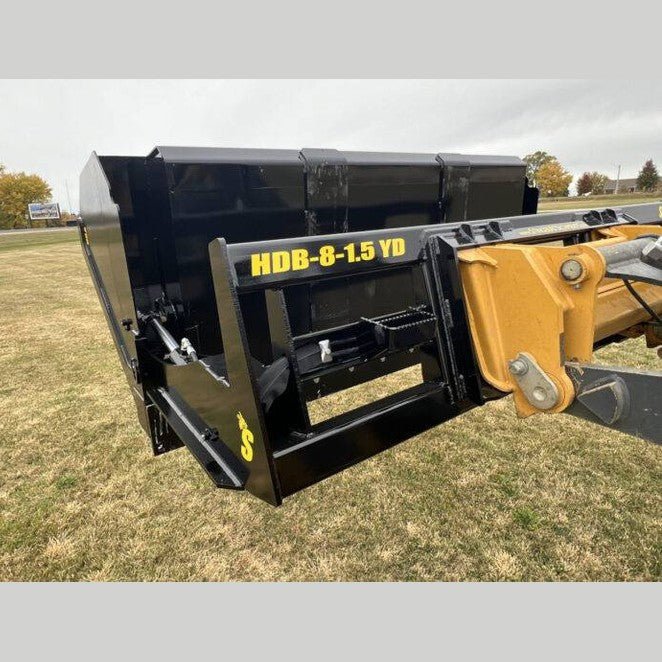

• Reinforced Main Underframe

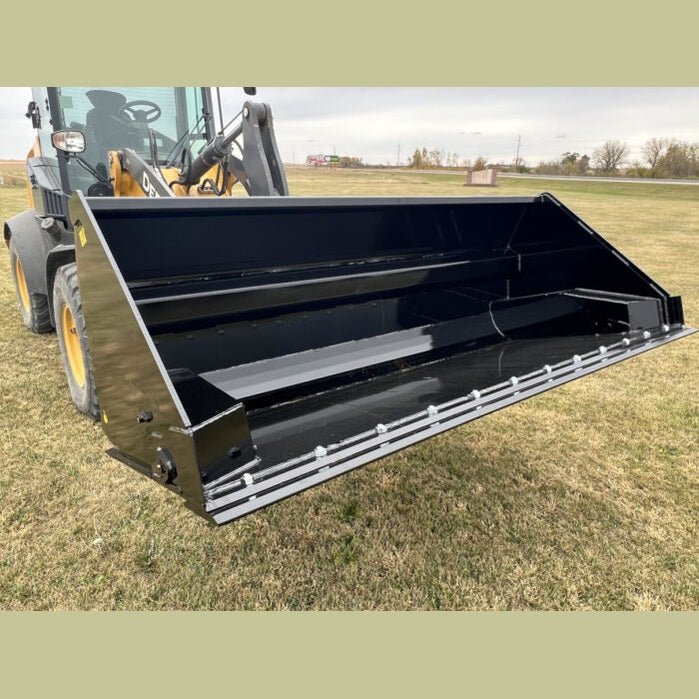

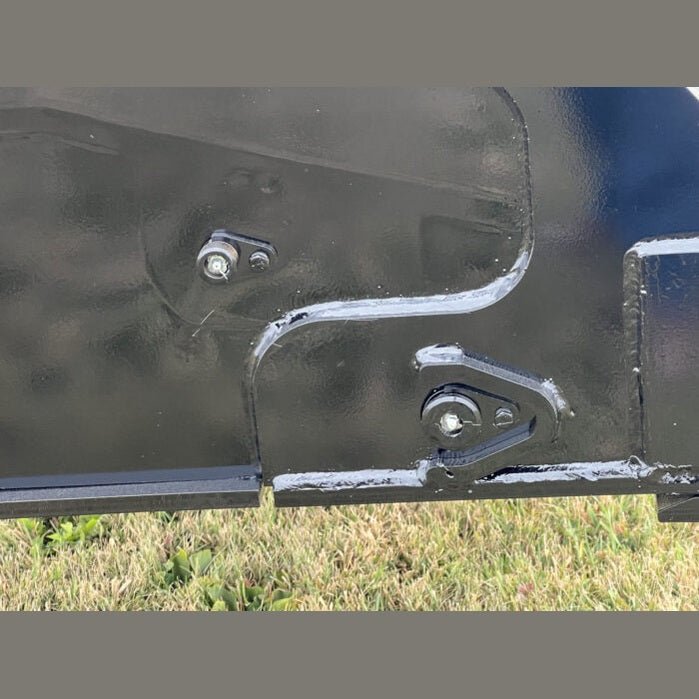

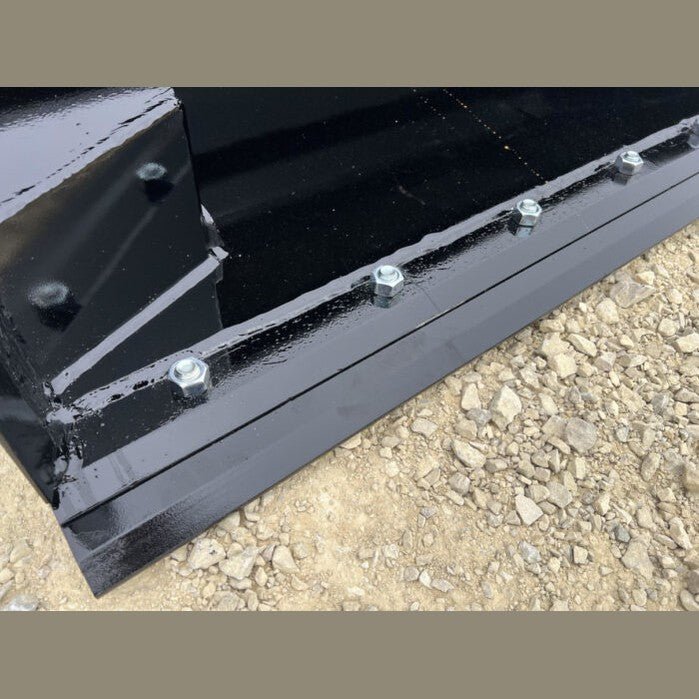

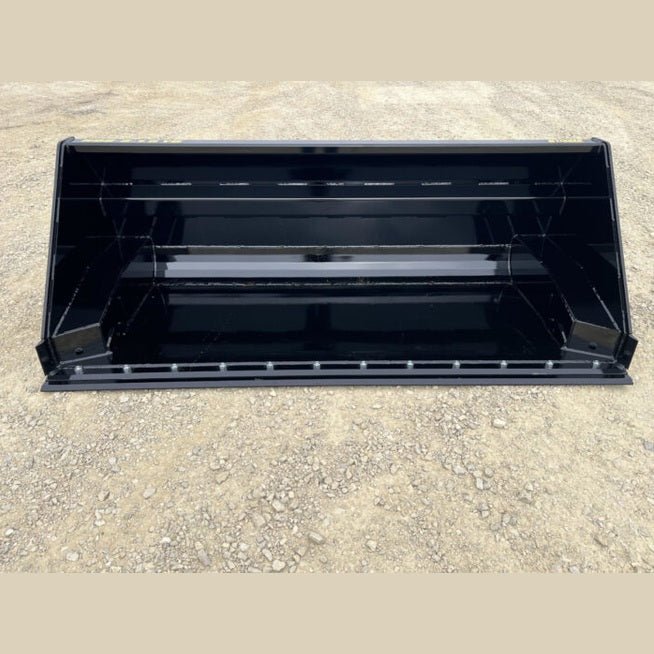

• Replaceable Bolt-on Double Bevel Cut Edge

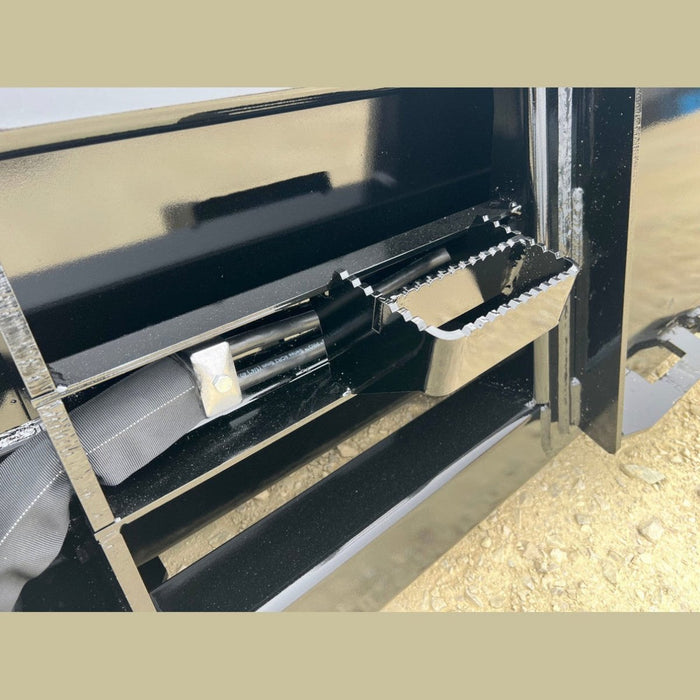

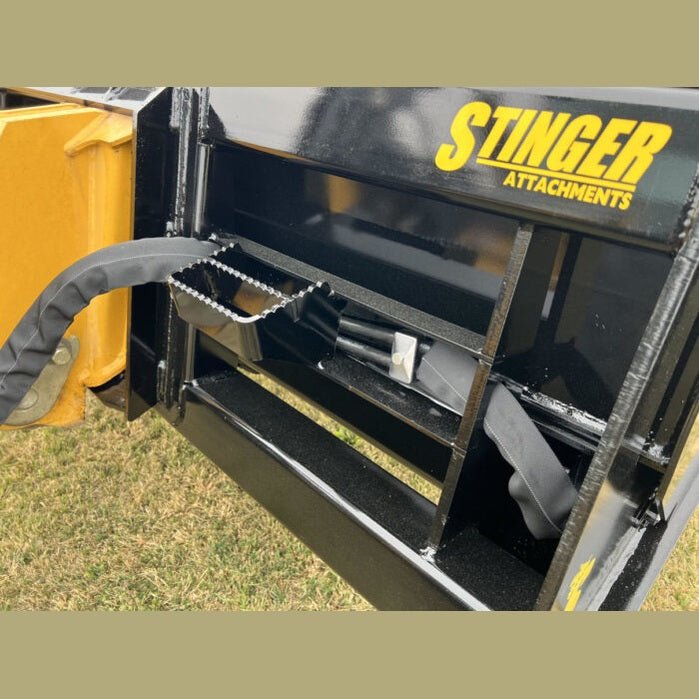

• Safety Step and Foot Plate for Easier Access

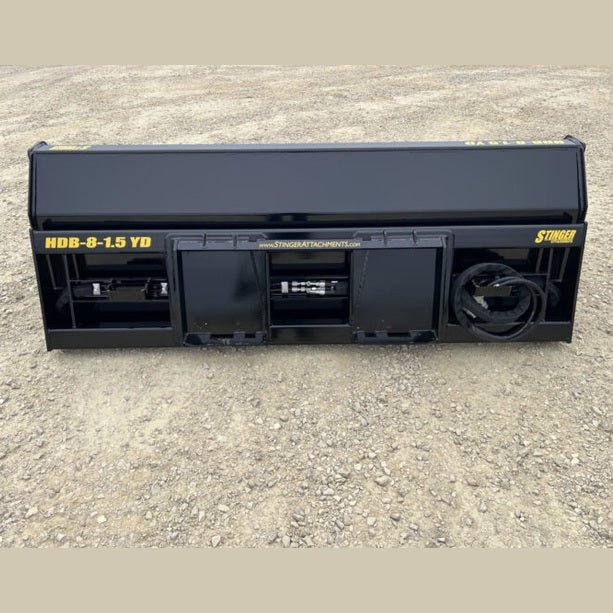

• Variety of mount options

SHIPPING & SUPPORT

This product ships directly from Stinger Attachments U.S. manufacturing facility. Standard lead time is 5–7 business days to ship.

Have questions or need help choosing the right size or accessories?
Contact us at sales@beaconattachments.com or call (810) 207-5677  — our team is here to help.
