Amulet XBoom Coupler For Excavators And Skid Steer Attachments - Amulet - Beacon Attachments

Amulet XBoom Coupler For Excavators And Skid Steer Attachments

by Amulet
SKU XB15
$3,495.00 - $4,695.00
$3,495.00
$3,495.00 - $4,695.00
$3,495.00

Authorized Dealer

Beacon Attachments is an authorized dealer of Amulet Manufacturing, ensuring quality and full manufacturer support.

Important Freight Shipping Notice

Our equipment ships via freight, and shipping costs are charged separately after checkout.

Prefer a single transatcion? Call us to place your order by phone.

Contact us anytime for a freight estimate. (810) 207-5677

Request a quote

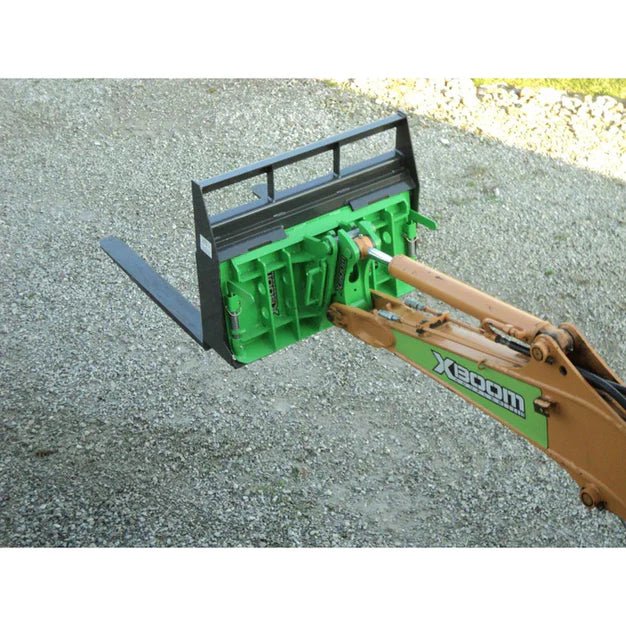

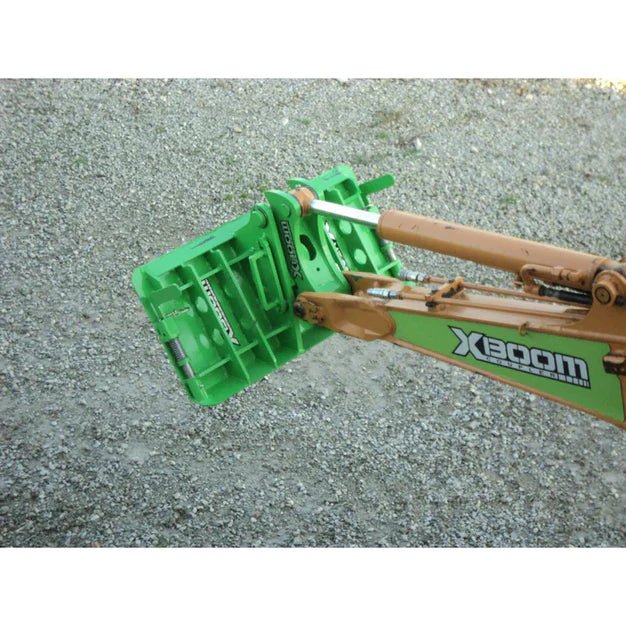

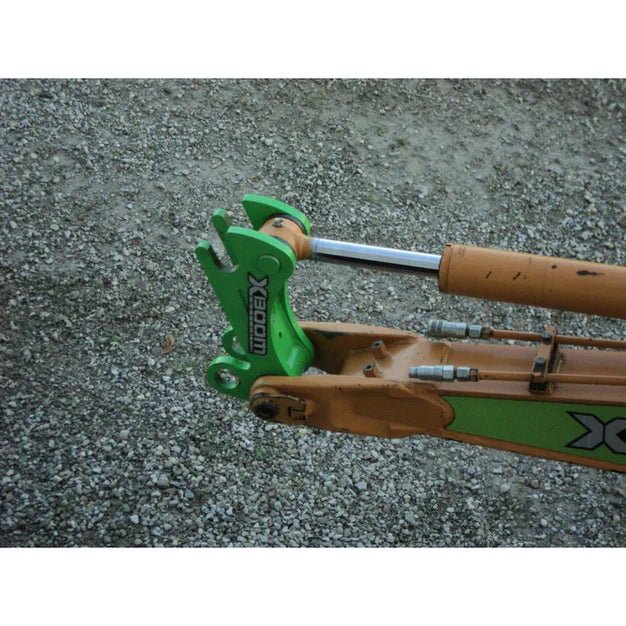

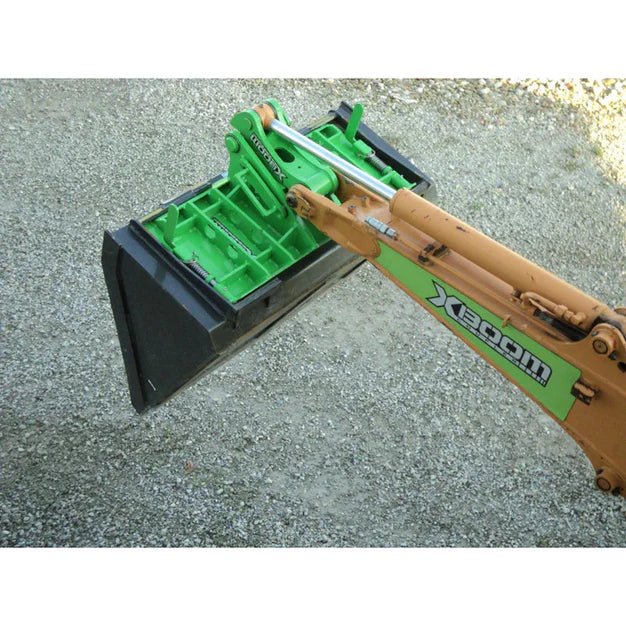

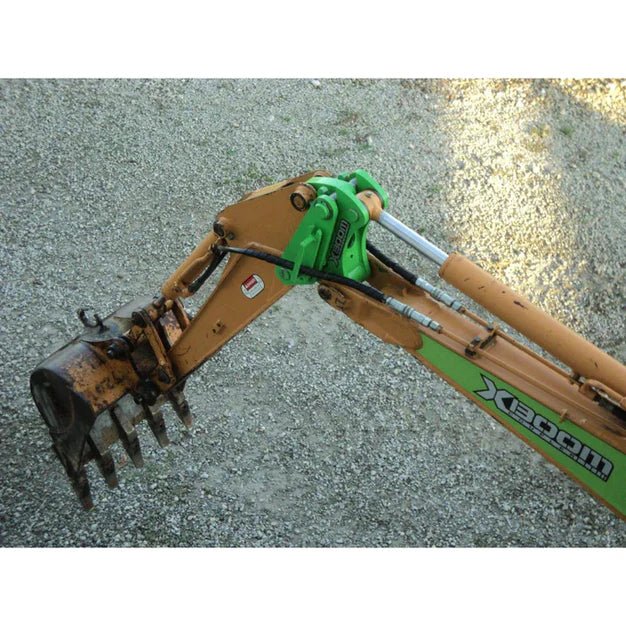

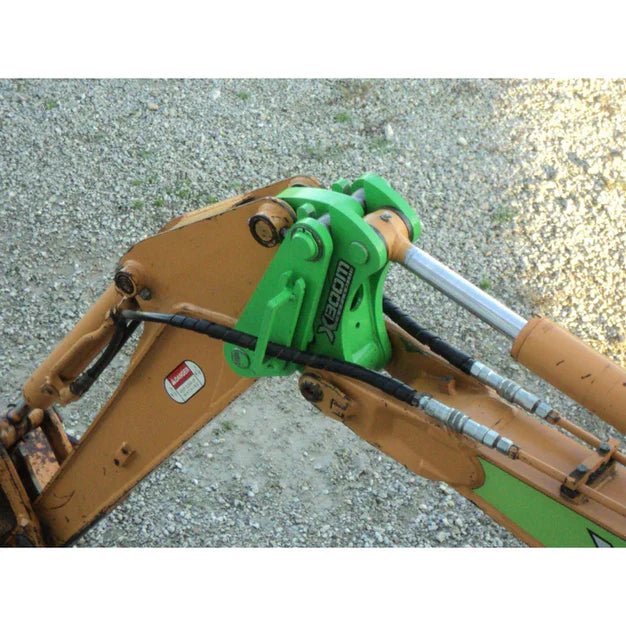

The Amulet XBoom Coupler® is a revolutionary type of excavator coupler system, comprised of three interacting components that quickly convert a mini excavator from its typical “excavator function” into a completely new rigid boom tool carrier, and back again. The XBoom system utilizes a Universal Skid Steer Adapter attached to the boom-end of the host machine. With this new rigid boom machine set-up, the excavator effectively utilizes virtually any universal skid steer attachment i.e. pallet forks, auger, hammer, dirt bucket, etc., in a full revolving configuration that shrinks the machine’s overall footprint, provides a rigid frontal force structure while utilizing the full range of motion of the host machine’s boom. Doing so keeps work tools as close to the machines’ center of gravity as possible for effective lifting and carrying.

FEATURES

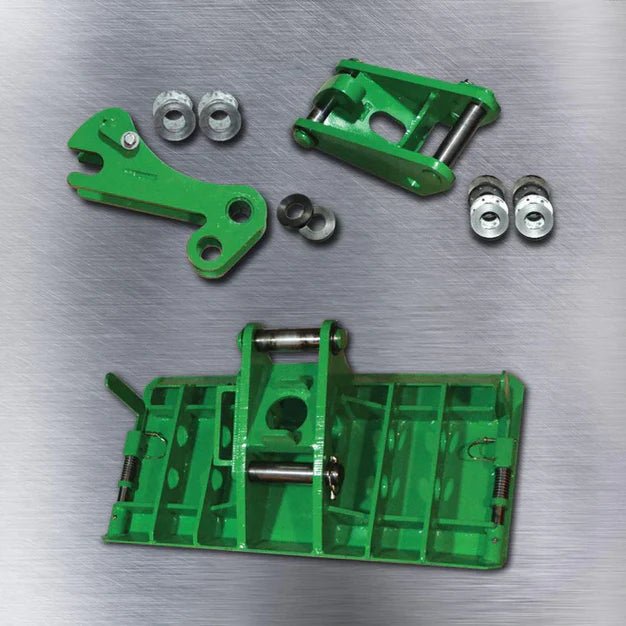

  • Revolutionary 3‑Part System

Combines boom coupler, arm receiver, and universal skid‑steer adapter to transform your excavator into a rigid‑boom, full‑revolving tool carrier.

  • Versatile Attachment Compatibility

Accepts virtually any universal skid‑steer loader attachment—from buckets and forks to augers, breakers, grapples, snow plows, hammers, trenchers, and more

  • Compact Footprint & Optimized Payload

Keeps attachments close to the machine’s center of gravity with a shortened rigid boom, enabling precise operations in confined areas without aggressive undercarriage maneuvers.

  • Quick Switch Between Dig and Lift Modes

Rapidly change from digging with a standard bucket to operating as a loader/tool carrier—no need for separate machines or trailers.

  • Wide Model Range

Available for excavators from 1.5 MT (4,000 lb) up to 6 MT (13,000 lb), with several adapter options: Mini-Walk‑Behind (MI), Mini-Universal (MU), or Standard Universal (SU).

  • Maintains Full Excavator Functionality

Doesn’t compromise your machine’s digging ability—dig as normal, then reconfigure in seconds for lifting and loading duties.

  • Optional QC‑Mate Hydraulic Clamp

Makes connecting hydraulic quick-couplers under pressure fast, safe, and easy.

  • Built Tough in the USA

Proudly fabricated by Amulet in Rathdrum, Idaho, backed by their 2‑year warranty.

SPECIFICATIONS

XB Model Fits Machine Weight (LB) Fits Machine Weight (Metric Ton) Adapter Choice
XB 15 4,000 1.5 – 1.7 MI (Mini-Walk Behind)
XB 25 6,000 1.8 – 2.6 MI or MU (Mini-Universal)
XB 30 7,000 2.7 – 3.2 MI or MU
XB 35 8,000 3.3 – 3.8 MU or SU (Standard Universal)
XB 45 10,000 3.9 – 4.6 SU
XB 50 11,000 4.7 – 5.3 SU
XB 60 13,000 5.4 – 6.0 SU



SHIPPING & SUPPORT

This product ships directly from Amulet U.S. manufacturing facility. Standard lead time is 5–7 business days to ship.

Have questions or need help choosing the right size or accessories?
Contact us at sales@beaconattachments.com or call (810) 207-5677 — our team is here to help.

Compare products

{"one"=>"Select 2 or 3 items to compare", "other"=>"{{ count }} of 3 items selected"}

Select first item to compare

Select second item to compare

Select third item to compare

Compare
OVERVIEW

The Amulet XBoom Coupler® is a revolutionary type of excavator coupler system, comprised of three interacting components that quickly convert a mini excavator from its typical “excavator function” into a completely new rigid boom tool carrier, and back again. The XBoom system utilizes a Universal Skid Steer Adapter attached to the boom-end of the host machine. With this new rigid boom machine set-up, the excavator effectively utilizes virtually any universal skid steer attachment i.e. pallet forks, auger, hammer, dirt bucket, etc., in a full revolving configuration that shrinks the machine’s overall footprint, provides a rigid frontal force structure while utilizing the full range of motion of the host machine’s boom. Doing so keeps work tools as close to the machines’ center of gravity as possible for effective lifting and carrying.

FEATURES

  • Revolutionary 3‑Part System

Combines boom coupler, arm receiver, and universal skid‑steer adapter to transform your excavator into a rigid‑boom, full‑revolving tool carrier.

  • Versatile Attachment Compatibility

Accepts virtually any universal skid‑steer loader attachment—from buckets and forks to augers, breakers, grapples, snow plows, hammers, trenchers, and more

  • Compact Footprint & Optimized Payload

Keeps attachments close to the machine’s center of gravity with a shortened rigid boom, enabling precise operations in confined areas without aggressive undercarriage maneuvers.

  • Quick Switch Between Dig and Lift Modes

Rapidly change from digging with a standard bucket to operating as a loader/tool carrier—no need for separate machines or trailers.

  • Wide Model Range

Available for excavators from 1.5 MT (4,000 lb) up to 6 MT (13,000 lb), with several adapter options: Mini-Walk‑Behind (MI), Mini-Universal (MU), or Standard Universal (SU).

  • Maintains Full Excavator Functionality

Doesn’t compromise your machine’s digging ability—dig as normal, then reconfigure in seconds for lifting and loading duties.

  • Optional QC‑Mate Hydraulic Clamp

Makes connecting hydraulic quick-couplers under pressure fast, safe, and easy.

  • Built Tough in the USA

Proudly fabricated by Amulet in Rathdrum, Idaho, backed by their 2‑year warranty.

SPECIFICATIONS
XB Model Fits Machine Weight (LB) Fits Machine Weight (Metric Ton) Adapter Choice
XB 15 4,000 1.5 – 1.7 MI (Mini-Walk Behind)
XB 25 6,000 1.8 – 2.6 MI or MU (Mini-Universal)
XB 30 7,000 2.7 – 3.2 MI or MU
XB 35 8,000 3.3 – 3.8 MU or SU (Standard Universal)
XB 45 10,000 3.9 – 4.6 SU
XB 50 11,000 4.7 – 5.3 SU
XB 60 13,000 5.4 – 6.0 SU



SHIPPING & SUPPORT

This product ships directly from Amulet U.S. manufacturing facility. Standard lead time is 5–7 business days to ship.

Have questions or need help choosing the right size or accessories?
Contact us at sales@beaconattachments.com or call (810) 207-5677 — our team is here to help.

WARRANTY

Amulet Manufacturing Company warrants to the original purchaser all non-hydraulic components manufactured by Amulet Manufacturing Company against defaults in materials, faulty design, and workmanship for a period of two (2) years from the date of purchase. Hydraulic components (cylinders, valves, fittings, hoses, and couplers) are warranted for a period of one (1) year and are subject to the Warranty of their respective manufacturer.

Amulet Manufacturing Company will repair and/or replace defective product free of charge within the limits of this policy.

Distributor/dealer must notify Amulet immediately of the defect by phone, fax, or email. All claims must be made in writing, and when possible, include photographs and a description of the failure. Additional investigative information relating to the claim may be requested by Amulet.
