ANBO Grapple Rake 30 For Skid Steers and Tractors

ANBO Grapple Rake 30 For Skid Steers and Tractors

by ANBO Manufacturing
SKU GR30-6-32
$2,850.00 - $3,610.00
$2,970.00
$2,850.00 - $3,610.00
$2,970.00

Important Freight Shipping Notice

Our attachments ship via freight, and shipping costs are invoiced separately after checkout.

1️⃣ Place your order online.
2️⃣ We get a freight quote from the carrier.
3️⃣ You receive a separate invoice for shipping.
4️⃣ Once paid, your order will process.

Prefer to handle everything at once? Call us to place your order by phone and get one combined invoice.

Questions? Contact us anytime for a freight estimate. (810) 207-5677
Request a quote

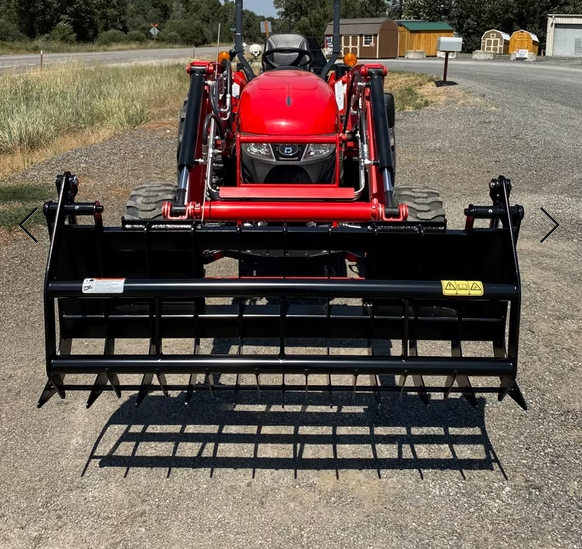

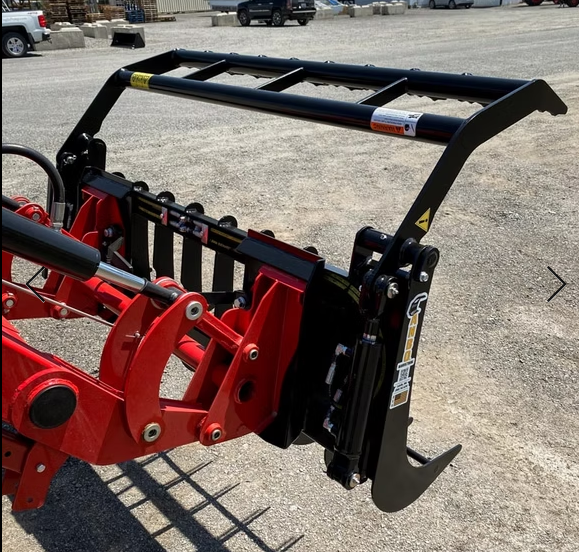

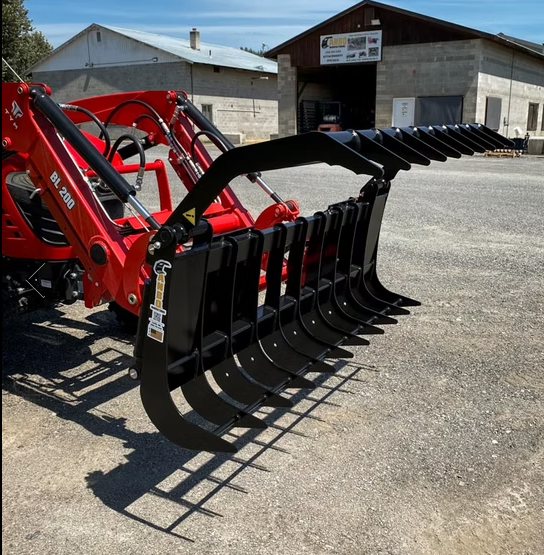

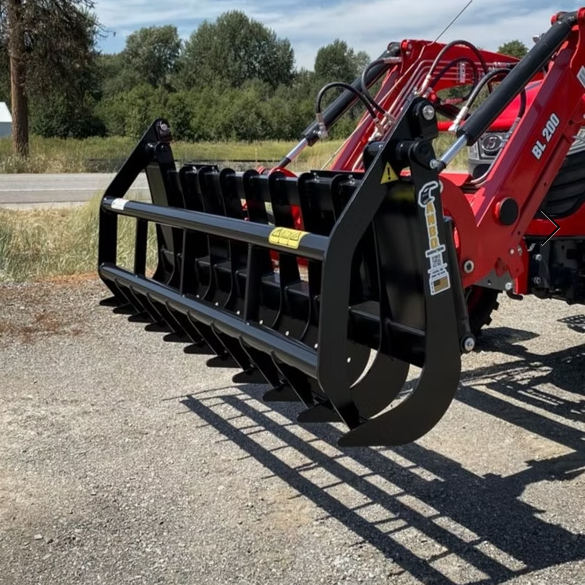

The GR30 Grapple Rake is an excellent choice for smaller machines that are 30 horsepower or less. This model is very similar to the GRSC model but is built to be a slightly heavier-duty unit. It has shorter tines with a rake bar, featuring a clamshell design that makes it easy to rake and dig with the tines. Along with the tines that make this a great unit for raking and digging it is also good for general use, such as removing rocks, collecting brush, and small logs, transporting firewood, removing roots and other debris from the soil, and much more! The versatility of a grapple rake makes it a valuable asset for improving productivity and efficiency on hobby farms or residential properties. All pivot points are greaseable and hoses are routed securely. Expertly crafted in the USA and made from American AR400F steel, 5x stronger than grade 36 steel, offering durability for a lifetime! This grapple comes with a two-year warranty and the cylinders have a three-year warranty.

This unit comes with 2" x 6" cylinders and the inner and outer tines are 1/4" AR400F steel.

FEATURES

USA AR400F Steel - Made out of USA AR400F Steel, up to 5x stronger while also being lighter than competing brands.

  • Higher Yield Strength
  • Lighter Weight
  • Maximizes Lift Capacity
  • USA Steel, Never Imported!

Quality Welds - Quality welds you can rely on. Essential in ensuring long-lasting durability under heavy use in all conditions.

  • Ensures Reliability
  • Increases Strength
  • Lasts for a Lifetime

Quenched and Tempered - AR400F is quenched and tempered, through hardened wear-resistance grades of abrasion. This specialized plate is designed for applications that demand both wear resistance and impact toughness.

  • Increases Durability
  • Resists Corrosion
  • Higher Wear Resistance

SPECIFICATIONS

SKU Tine Spacing Width Weight Max HP Tine Size (Outer : Inner) Opening Cylinders
GR30 6" 32" 210 lb 30 hp 1/4" : 1/4" 36" 2" x 6"
GR30 6" 38" 230 lb 30 hp 1/4" : 1/4" 36" 2" x 6"
GR30 6" 44" 256 lb 30 hp 1/4" : 1/4" 36" 2" x 6"
GR30 6" 50" 276 lb 30 hp 1/4" : 1/4" 36" 2" x 6"
GR30 6" 57" 301 lb 30 hp 1/4" : 1/4" 36" 2" x 6"
GR30 6" 63" 314 lb 30 hp 1/4" : 1/4" 36" 2" x 6"
GR30 6" 69" 334 lb 30 hp 1/4" : 1/4" 36" 2" x 6"

SHIPPING & SUPPORT

This product ships directly from ANBO Manufacturing U.S. manufacturing facility. Standard lead time is 5–7 business days to ship.

Have questions or need help choosing the right size or accessories?
Contact us at sales@beaconattachments.com or call (810) 207-5677 — our team is here to help.
