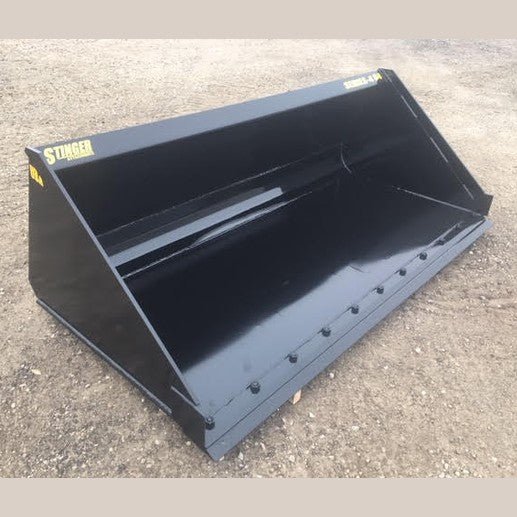

The Series 4 material bucket has a 40-inch deep scoop that offers increased capacity while maintaining visibility of the cutting edge. Its 4-inch-wide and ½-inch-thick wear bars prolong bucket life while offering improved strength. A reinforcement tube across the bucket’s top increases strength and durability. We also added a step to the bucket for easier access.

The bucket is available in sizes ranging from 60 to 84 inches wide. It comes standard with a universal mount plate, though we can custom-fit other mounting options or leave off the mounting plate if you prefer.

FEATURES

  • ¼” grade 50 shell.
  • 40” deep bucket for increased capacity and greater visibility of the cutting edge.
  • Weld on, or bolt on cutting edge options.
  • ¼” sides with½” thick side braces for added strength.
  • 4” wide by ½” thick wear bars for improved strength and prolonged bucket life.
  • Reinforcement tube across top of bucket for greater strength, durability and ultimate
    visibility.
  • ¼” rolled insert for added strength and better clean out.
  • Included step for easier access.

SPECIFICATIONS

Size Approx. LBS (Bolt-On) Struck Capacity (CU.FT.) Heap Capacity (CU.FT.) Back Angle # of 1/2 "X4" Wear Bars
60" 690 LBS 17.2 21.5 68 DEG 4
66" 755 LBS 19 23.8 68 DEG 4
72" 820 LBS 20.7 25.9 68 DEG 4
78" 885 LBS 22.5 28 68 DEG 5
84" 950 LBS 24.2 30.3 68 DEG 5



SHIPPING & SUPPORT

This product ships directly from Stinger Attachments U.S. manufacturing facility. Standard lead time is 5–7 business days to ship.

Have questions or need help choosing the right size or accessories?
Contact us at sales@beaconattachments.com or call (810) 207-5677  — our team is here to help.

Compare products

{"one"=>"Select 2 or 3 items to compare", "other"=>"{{ count }} of 3 items selected"}

Select first item to compare

Select second item to compare

Select third item to compare

Compare
OVERVIEW

The Series 4 material bucket has a 40-inch deep scoop that offers increased capacity while maintaining visibility of the cutting edge. Its 4-inch-wide and ½-inch-thick wear bars prolong bucket life while offering improved strength. A reinforcement tube across the bucket’s top increases strength and durability. We also added a step to the bucket for easier access.

The bucket is available in sizes ranging from 60 to 84 inches wide. It comes standard with a universal mount plate, though we can custom-fit other mounting options or leave off the mounting plate if you prefer.

FEATURES
  • ¼” grade 50 shell.
  • 40” deep bucket for increased capacity and greater visibility of the cutting edge.
  • Weld on, or bolt on cutting edge options.
  • ¼” sides with½” thick side braces for added strength.
  • 4” wide by ½” thick wear bars for improved strength and prolonged bucket life.
  • Reinforcement tube across top of bucket for greater strength, durability and ultimate
    visibility.
  • ¼” rolled insert for added strength and better clean out.
  • Included step for easier access.
SPECIFICATIONS
Size Approx. LBS (Bolt-On) Struck Capacity (CU.FT.) Heap Capacity (CU.FT.) Back Angle # of 1/2 "X4" Wear Bars
60" 690 LBS 17.2 21.5 68 DEG 4
66" 755 LBS 19 23.8 68 DEG 4
72" 820 LBS 20.7 25.9 68 DEG 4
78" 885 LBS 22.5 28 68 DEG 5
84" 950 LBS 24.2 30.3 68 DEG 5



SHIPPING & SUPPORT

This product ships directly from Stinger Attachments U.S. manufacturing facility. Standard lead time is 5–7 business days to ship.

Have questions or need help choosing the right size or accessories?
Contact us at sales@beaconattachments.com or call (810) 207-5677  — our team is here to help.

WARRANTY

Stinger Attachments warrants each new product manufactured by Stinger to be free from defects in material and workmanship for a period of Twenty-Four (24) months from date of delivery to the original purchaser. Certain Items may have an extended warranty, such as Cascade forks and Eaton drive motors. Please check each product page for more information.

All returns must be in new condition with all freight costs the responsibility of the buyer. No returns accepted after 10 days of buyer receiving the product.
