Stinger Attachments Mini Auger Drive For Skid Steers - Stinger Attachments - Beacon Attachments

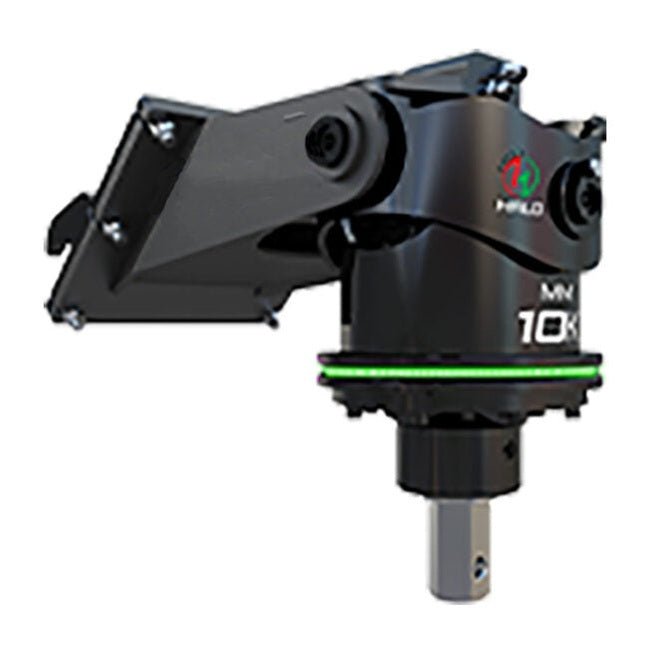

Stinger Attachments Mini Auger Drive For Skid Steers

by Stinger Attachments
SKU MAUGDR-1
$2,430.00 - $3,870.00
$2,430.00
$2,430.00 - $3,870.00
$2,430.00

Authorized Dealer

Beacon Attachments is an authorized dealer of Stinger Attachments, ensuring quality and full manufacturer support.

Important Freight Shipping Notice

Our equipment ships via freight, and shipping costs are charged separately after checkout.

Prefer a single transatcion? Call us to place your order by phone.

Contact us anytime for a freight estimate. (810) 207-5677

Request a quote

The Stinger Attachments Mini Auger Drive is designed for Mini Skid Steer Loaders. They are designed and built to provide the ultimate in performance, quality and cost effectiveness. This model is offered in 2-way swing (Front to Rear) or 4-way swing (Front to Rear and Side to Side). These drives are also offered with an optional HALO LED light alignment system to assist with precision drilling for straight, level holes every time.

FEATURES

  • Compact High Torque manufactured gearbox
  • Fitted with Eaton motor
  • 2 Piece shaft design ensures maximum side load ratings without increasing load on bearings
  • Lifetime shaft pull out warranty
  • 5 year gearbox and 3 year motor warranty
  • Designed with over 30 years design and manufacturing experience
  • Optional HALO LED Alignment System (Wired or Wireless)

SPECIFICATIONS

SINGLE SPEED

Specification Details
Torque @ 3000 PSI 2,119 ft-lbs
Max Torque @ 3500 PSI N/A
Recommended Flow (GPM) 6–16
Motor Type Eaton
Max Pressure (Do Not Exceed) 3,000 PSI @ 11 GPM
Max Flow (Do Not Exceed) 15 GPM @ 2,300 PSI
Max Horsepower 20 HP
Pressure Relief Valve Optional
Standard Output Shaft 2″ Hex
HALO (Auger Alignment) Optional
Recommended Auger A4 / RC4
Max Drilling Diameter (Clay/Shale) 12″
Max Drilling Diameter (Earth) 24″
Weight 72 lbs
Overall Length 16.6″
Diameter 8″



Output Speed & Torque

GPM RPM PSI Torque (ft-lbs)
6 26 1,500 1,060
8 35 1,700 1,201
10 43 1,900 1,342
12 52 2,100 1,484
14 61 2,300 1,625
16 69 2,500 1,766
– – 2,700 1,907
– – 2,900 2,049
– – 3,100 2,190
– – 3,300 2,331
– – 3,500 2,473



SHIPPING & SUPPORT

This product ships directly from Stinger Attachments U.S. manufacturing facility. Standard lead time is 5–7 business days to ship.

Have questions or need help choosing the right size or accessories?
Contact us at sales@beaconattachments.com or call (810) 207-5677  — our team is here to help.

Compare products

{"one"=>"Select 2 or 3 items to compare", "other"=>"{{ count }} of 3 items selected"}

Select first item to compare

Select second item to compare

Select third item to compare

Compare
OVERVIEW

The Stinger Attachments Mini Auger Drive is designed for Mini Skid Steer Loaders. They are designed and built to provide the ultimate in performance, quality and cost effectiveness. This model is offered in 2-way swing (Front to Rear) or 4-way swing (Front to Rear and Side to Side). These drives are also offered with an optional HALO LED light alignment system to assist with precision drilling for straight, level holes every time.

FEATURES
  • Compact High Torque manufactured gearbox
  • Fitted with Eaton motor
  • 2 Piece shaft design ensures maximum side load ratings without increasing load on bearings
  • Lifetime shaft pull out warranty
  • 5 year gearbox and 3 year motor warranty
  • Designed with over 30 years design and manufacturing experience
  • Optional HALO LED Alignment System (Wired or Wireless)
SPECIFICATIONS

SINGLE SPEED

Specification Details
Torque @ 3000 PSI 2,119 ft-lbs
Max Torque @ 3500 PSI N/A
Recommended Flow (GPM) 6–16
Motor Type Eaton
Max Pressure (Do Not Exceed) 3,000 PSI @ 11 GPM
Max Flow (Do Not Exceed) 15 GPM @ 2,300 PSI
Max Horsepower 20 HP
Pressure Relief Valve Optional
Standard Output Shaft 2″ Hex
HALO (Auger Alignment) Optional
Recommended Auger A4 / RC4
Max Drilling Diameter (Clay/Shale) 12″
Max Drilling Diameter (Earth) 24″
Weight 72 lbs
Overall Length 16.6″
Diameter 8″



Output Speed & Torque

GPM RPM PSI Torque (ft-lbs)
6 26 1,500 1,060
8 35 1,700 1,201
10 43 1,900 1,342
12 52 2,100 1,484
14 61 2,300 1,625
16 69 2,500 1,766
– – 2,700 1,907
– – 2,900 2,049
– – 3,100 2,190
– – 3,300 2,331
– – 3,500 2,473



SHIPPING & SUPPORT

This product ships directly from Stinger Attachments U.S. manufacturing facility. Standard lead time is 5–7 business days to ship.

Have questions or need help choosing the right size or accessories?
Contact us at sales@beaconattachments.com or call (810) 207-5677  — our team is here to help.

WARRANTY

Stinger Attachments warrants each new product manufactured by Stinger to be free from defects in material and workmanship for a period of Twenty-Four (24) months from date of delivery to the original purchaser. Certain Items may have an extended warranty, such as Cascade forks and Eaton drive motors. Please check each product page for more information.

All returns must be in new condition with all freight costs the responsibility of the buyer. No returns accepted after 10 days of buyer receiving the product.
